Description

The motor reducer outputs power to the sprocket and chain, which directly acts on the chain and the chain buckle, thereby driving the chain to walk. It has a simple structure, is compact, easy to install and adjust, and is suitable for conveyors with a shorter length.

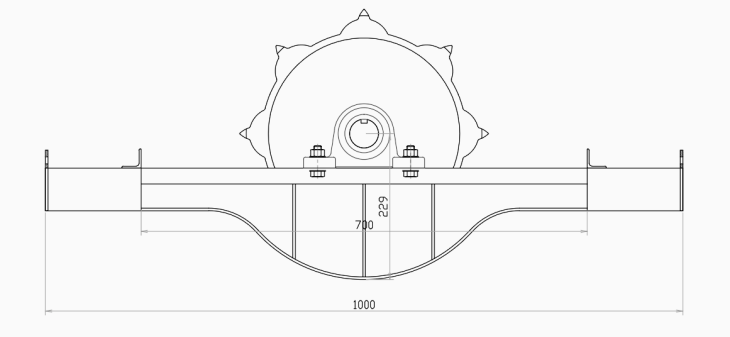

5T Oxback type Drive Unit details

Parameter

Conveyor model	WT3(X-348)	WT4(X-458)	WT6(X-678)	Wt80	WT100	WT160
Single hanging point load kg	100	200	600	80	500	750
Running speed M/min	0.5~18	0.5~18	1~18	0.5~15	0.5~15	0.5~15
Minimum hanging spacing mm	306.4	409.6	612.4	320	400	640
Allowable tension of chain kg	900	1500	2700	1100	1500	3000
Ultimate load of chain kg	10900	21800	38600	11000	22000	40000
Limit length of conveyor M	450	600	750	450	500	700
Allowable load of slide carriage kg	1100	1800	5000	1250	2500	4000
Ultimate load of slide carriage kg	1800	3600	7700	2500	5000	800
Hardness of roller road surface HRC	>58	>58	>58	>40	>40	>40
Diameter of roller mm	60	82	125	65	100	120
Track type	工8	工10	工16	工10	工12:工14	工 8:工16
Minimum turning radius mm	R300	R450	R600	R203	R317	R404
Minimum vertical radius mm	R1200	R1700	R3400	R1600	R2000	R3150
Chain gauge mm	64	80	100	75	105	125
Chain weight kg	2.99	5.76	9.43	3.75	4.70	9.24
Chain pitch mm	76.6	102.4	153.2	80	100	160
