Description

Stainless steel cold drink processing and conveying chain is mainly used in ice cream production line to complete the filling, quick freezing, packaging and conveying of ice cream.

With high-quality stainless steel materials such as o6Cr1gNi10(304) and05Cr17Ni4Cu4Nb (630), advanced processing technology and efficient process equipment, the product has the characteristics of corrosion resistance, wear resistance and low temperature resistance.

Parameter

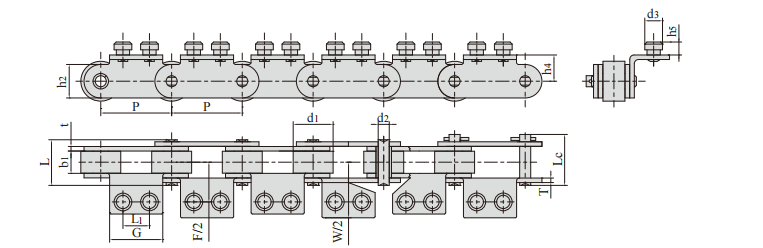

Conveyor chains for cold drink production
conveyor chains for cold drink production489-3

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		L
max 		Lc
max 		h2
max 		t/T
max 		Q
min 		q
mm mm mm mm mm mm mm mm kN/lbf kg/m
C2082SSA2F3 50.80  28.58  15.75  7.92  32.70  36.5  22.60  3.25  39/8767 2.8

Chain No. G L1 F W h4 h5 d3
mm mm mm mm mm mm mm
C2082SSA2F3 38.10  19.05  57.16  78.00  18.50  12.70  9.53

conveyor chains for cold drink production489-4

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Tensile
strength
Weight
per
meter
P d1
max 		b1
min 		d2
max 		L
max 		Lc
max 		h2
max 		t/T
max 		Q
min 		q
mm mm mm mm mm mm mm mm kN/lbf kg/m
C2082SSA2F4 50.80  28.58  15.75  7.92  32.70  36.5  22.60  3.25  39/8767 2.8

Chain No. G L1 F W h4 h5 d3
mm mm mm mm mm mm mm
 C2082SSA2F4 38.10  19.05  57.16  78.00  18.70  8.50  12.70

conveyor chains for cold drink production489-5

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		L
max 		Lc
max 		h2
max 		t/T
max 		Q
min 		q
mm mm mm mm mm mm mm mm kN/lbf kg/m
C2082SSSA2F1 50.80  28.58  15.75  7.92  32.70  36.5  22.60  3.25  39/8767 2.66

Chain No. P G L1 C F L d3
mm mm mm mm mm mm mm
C2082SSSA2F1 50.80  38.10  19.05  25.40  31.80  19.20  7.92

conveyor chains for cold drink production489-6

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
dimension 		Attachment
dimension 		Tensile
strength
P d1
max 		b1
min 		d2
max 		Lc
max 		h2
max 		t/T
max 		h4 d5 d6 G L L3 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm mm kN/lbf
P70F2SS 70.00  30.00  15.75  11.98  39.9  28.0  3.1  20.0  12.0  9.2  50.0  25.5  7.0  22.5/5058

conveyor chains for cold drink production489-7

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
dimension 		Attachment
dimension 		Tensile
strength
P d1
max 		h1
min 		d2
max 		L
max 		Lc
max 		L3 h2
max 		t/T
max 		d3 d4 L4
max 		Q
min
mm mm mm mm mm mm mm mm mm mm mm mm kN/lbf
P50F10SS 50.00  25.00  18.00  7.00  56.2  35.7  25.5  20.0  3.0  6.00  12.0  10.0  25.0/5620

conveyor chains for cold drink production489-8

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		d3
max 		L
max 		Lc
max 		L3 h2
max 		t/T
max 		Q
min 		q
mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P100F135SS-D3 100.00  30.00  18.20  10.00  12.00  61.6  68.0  29.0  25.0  3.0  30/6744 2.8
