Description

Conveyor chains in steel mills are used for production equipment in steel mills, mainly including chains for conveying ore and scrap steel on plate conveyors in steel mills,chains for steel rolling production lines, conveyor chains for producing steel pipes and bars, chain for drawing machines and various special chains.

With optimized structural design, high-quality materials and advanced technology, the products have the characteristics of high temperature resistance,impact resistance.wear resistance, high humidity resistance and high reliability, which are widely used in iron and steel smelting industry

Parameter
Conveyor chains for steel mill

conveyor chains for steel mill555-3

Chain No. Pitch Roller
diameter 		Pin
diameter 		Pin
length 		Plate
thickness 		Attachment
dimensions 		Tensile
strength
P d1
max 		d2
max 		L
max 		t/T
max 		G M h4 h T1 Q
min
mm mm mm mm mm mm mm mm mm mm kN/lbf
P500 500.0  170.0  80.0  281.0  50.0/25.0 470.0  250.0  175.0  269.0  30.0  1900/427419
P500F23 500.0  170.0  80.0  261.0  60.0/20.0 470.0  250.0  155.0  240.0  30.0  1600/359680

conveyor chains for steel mill555-4

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Plate
depth 		Tensile
strength
P d1
max 		d5
max 		b1
min 		d2
max 		L
max 		T
max 		h2 Q
min
mm mm mm mm mm mm mm mm kN/lbf
P250F168 250.0  107.0  160.0  78.0  62.0  330.0  16.0  150.0  1000/224800
P500F1 500.0  107.0  160.0  78.0  62.0  325.0  20.0  150.0  800/179966
P500F2 500.0  107.0  160.0  76.0  62.0  310.0  16.0  150.0  700/157470
P500F18 500.0  107.0  160.0  78.0  62.0  310.0  16.0  150.0  1000/224800

conveyor chains for steel mill555-5

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		d4
max 		b1
min 		d2
max 		d3
max 		L1
max 		t/T
max 		L L2 M h4 Q
min 		q
mm mm mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P650 650.0  135.0  85.0  56.0  32.0  35.0  232.0  25.0  420.0  690.0  600.0  120.0  750/168718 214.5
P750 750.0  200.0  85.0  82.0  55.0  35.0  276.0  30.0/25.0 380.0  690.0  600.0  162.5 2050/460858 -

conveyor chains for steel mill555-6

Chain No. Pitch Roller
diameter 		Width
between
outer plates 		Pin
diameter 		Pin
length 		Plate
depth 		Plate
thickness 		Attachment
dimension 		Average
tensile
strength
P d1
max 		b2
min 		d2
max 		Lc
max 		h2 t/T
max 		h4 W Q0
mm mm mm mm mm mm mm mm mm kN/lbf
  P600F1 600.0  150.0  117.0  38.0  187.0  122.0  18/15 105.7  220.0  1470/330687

conveyor chains for steel mill555-7
Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Attachment
dimension 		Tensile
strength
P d1
max 		d5
max 		b1 d2
max 		L
max 		T
max 		W M h2 h4 Q
min
mm mm mm mm mm mm mm mm mm mm mm kN/lbf
P625 625.0  107.0  160.0  78.0  62.0  310.0  16.0  227.5  130.0  200.0  215.0  700/157470

conveyor chains for steel mill555-8

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Plate
depth 		Pin
length 		Plate
thickness 		Attachment
dimension 		Tensile
strength
P d1
max 		d5
max 		b1
min 		d2
max 		h2 L
max 		T
max 		h4 M Q
min
mm mm mm mm mm mm mm mm mm mm kN/lbf
P1000 1000.0  110.0  170.0  384.0  80.0  180.0  678.0  30.0  832.0  680.0  1800/404923

conveyor chains for steel mill555-9

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t h2
max 		h4 L1 G Q
min 		q
mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P250F168 250.0  107.0  78.0  62.0  330.0  16.0  150.0  840.4  213.0  280.0  1000/224800 270.5

conveyor chains for steel mill555-10

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Inner
Plate
depth 		Plate
thickness 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		h2
max 		t/T Q
min 		q
mm mm mm mm mm mm mm kN/lbf kg/m
P95.25F1 95.25  44.45  33.30  15.88  81.00  38.10  8.00  180.0/40464 13.63

Chain No. P C d4 t1 L1 G1 L2 G2 α
mm mm mm mm mm mm mm mm mm
P95.25F1 95.25  102.85  7.90  6.40  63.50  82.50  44.45  82.50  20°

conveyor chains for steel mill555-11
Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Tensile
strength
P d1
max 		d5
max 		b1
min 		d2
max 		L
max 		L1
max 		t/T
max 		Q
min
mm mm mm mm mm mm mm mm kN/lbf
P300F5 300.0  95.0  65.0  50.0  44.0  135.0  222.0  50.0/16.0 500.0/112478.0
conveyor chains for steel mill555-12

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Plate
depth 		Transverse
pitch 		Tensile
strength 		Weight
per
meter
P d1
max 		d5
max 		b1
min 		d2
max 		L
max 		T
max 		h2
max 		Pt Q
min 		q
mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P45F8 45.0  36.0  69.0  18.0  12.00  128.0  4  30.0  108.0  160/35968 25.70
P63F4 63.0  48.0  90.0  30.0  15.88  202.0  6  41.0  135.0  200/44991 36.57
P100F316-2 100.0  60.0  140.0  39.0  22.00  256.0  8  50.0  160.0  450/101160 84.10

conveyor chains for steel mill555-13

Chain No. Pitch Plate
lacing 		Pin
diameter 		Pin
length 		Plate
thickness 		Plate
dimension 		Tensile
strength 		Average
tensile
strength 		Weight
per
meter
P d2
max 		Lc
max 		T
max 		h2 M Q
min 		Q0 q
mm mm mm mm mm mm kN/lbf kN/lbf kg/m
LF152F1 152.0  6x5   26.92  279.4  25.4  50.8  283.2  2000/449600 2200/494560 70.0
LF155 155.0  7x8   31.50  595.0  40.0  65.0  605.0  3200/719864 3520/791851 202.2

conveyor chains for steel mill555-14

Chain No. Pitch Plate
lacing 		Pin
diameter 		Pin
length 		Plate
thickness 		Plate
dimension 		Tensile
strength 		Average
tensile
strength 		Weight
per
meter
P d2
max 		Lc
max 		T
max 		h2 M Q
min 		Q0 q
mm mm mm mm mm mm kN/lbf kN kg/m
LF150F1 150.0  18×19 30.0  1117.0  30.0  65.0  1119.0  5200/1169000 5700.0  365.0

conveyor chains for steel mill555-15

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Attachment
dimension 		Weight
per
meter
P d1
max 		b1 d2
max 		L
max 		T
max 		T1 W F d4 G q
mm mm mm mm mm mm mm mm mm mm mm kg/m
P75F9 75.0  35.0  28.0  15.0  56.0  6.0  6.0  100.0  76.0  12.0  50.0  22.3

conveyor chains for steel mill555-16

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		b1 d2
max 		Lc
max 		T
max 		F W d4 h1 Q
min 		q
mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P50.8F10 50.8  28.6  40.0  18.5  80.0  9.0  101.6  143.6  15.0  53.0  193/43416 11.2

conveyor chains for steel mill555-17

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
dimension 		Attachment
dimension 		Tensile
strength
P d1
max 		d4 b1
min 		d2
max 		d3
max 		Lc
max 		h2 T
max 		L L2 M h4 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm mm kN/lbf
P600F3 600.0  135.0  76.0  68.0  30.0  30.0  200.3  100.0  15.0  550.0  794.0  670.0  120.0  1000.0/224809.0

conveyor chains for steel mill555-18

Chain No. Pitch Roller
diameter 		Width
between
outer plates 		Pin
diameter 		Pin
length 		Plate
dimension 		Tensile
strength
P d4
max 		b1 d2
max 		d3
max 		Lc
max 		h2 T
max 		Q
min
mm mm mm mm mm mm mm mm kN/lbf
P300F7 300.0  65.0  53.0  44.0  28.0  108.9  96.0  16.0  500.0/112404.0

conveyor chains for steel mill555-19

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Weight
per
meter
P d1
max 		h1
min 		d2
max 		Lc
max 		t/T h2
max 		C F L G d4 q
mm mm mm mm mm mm mm mm mm mm mm mm kg/m
P450F9SA3 450.0  85.0  78.0  45.0  185.0  18.0  120.0  133.0  150.0  160.0  230.0  26.0  61.7

conveyor chains for steel mill555-20

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength
P d1
max 		d5
max 		b1
min 		d2
max 		Lc
max 		t/T h2
max 		h4 G M T1 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm kN/lbf
P250F132 250.0  60.0  100.0  65.0  30.0  203.0  10.0  70.0  100.0  200.0  135.0  15.0  412.0/92618.0

conveyor chains for steel mill555-21

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		d5
max 		b1
min 		d2
max 		Lc
max 		t/T h2
max 		W F L1  G d4 h4 t2 Q
min 		q
mm mm mm mm mm mm mm mm mm mm mm   mm mm mm mm kN/lbf kg/m
P300F38A2-F 300  128  160  67  25  138  13  78  300  211  110  170  19  70  10  485/109028 49.6

conveyor chains for steel mill555-22

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t/T h2
max 		  h4 G M T1 Q
min 		q
mm mm mm mm mm mm mm   mm mm mm mm kN/lbf kg/m
P300F48 300  100  51  30  111  5  70   65  369  120  8  230/51704 25

conveyor chains for steel mill555-23
Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t/T h2
max 		 h4 G M  T1 Q
min 		q
mm mm mm mm mm mm mm   mm mm mm   mm kN/lbf kg/m
P600F9 600.0  150.0  76.0  38.0  185.5  20/16 123.0  114.5  570.0  200.0  16.0  1300/292240 90.4

conveyor chains for steel mill555-24

Chain No. Pitch Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength
P b1
min 		d2
max 		L
max 		Lc
max 		t/T h2
max 		C F G Q
min
mm mm mm mm mm mm mm mm mm mm kN/lbf
P240F5 240.0  32.0  32.0  66.0  84.0  9.0  70.0  100.0  135.0  240.0  450/101160

conveyor chains for steel mill555-25

Chain No. Pitch Bush
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t h2
max 		d3 F Q
min 		q
mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P152F207SR2 152.4  39.0  48.0  25.0  176.0  12.0  62.0  133.0  150.0  1500.0/337200 23.7

conveyor chains for steel mill555-26

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t h2
max 		d3 F Q
min 		q
mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P63F47 63.0  48.0  30.0  14.0  115.0  6.0/6.0 40.0  44.0  98.0  160.0/35968 20.5
P101.6F151SR2 101.6  63.5  48.0  18.0  150.0  8.0/8.0 40.0  50.0  134.0  235.0/52828 25.0

conveyor chains for steel mill555-27

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t h2
max 		h3 h5 h6 Q
min 		 q
mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P125F51 125.00  40.00  21.00  14.00  77.00  10.00  36.00  75.00  155.00  200.00  160.00/35968 11.70
P125F56 125.00  40.00  21.00  14.00  68.00  8.00  36.00  75.00  155.00  200.00  160.00/35968  9.26

conveyor chains for steel mill555-28

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Attachment
dimension 		Tensile
strength 		Average
tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t h2
max 		h4 L1 L2 Q
min 		Q0 q
mm mm mm mm mm mm mm mm mm mm kN/lbf kN kg/m
P100F254 100.0  31.8  16.0  9.7  54.0  6.3  28.6  145.0  15.0  30.0  160.0/35968 108.0  84.1
P100F341 100.0  31.8  16.0  9.7  54.0  6.3  28.6  145.0  70.0  30.0  160.0/35968 108.0  25.7

conveyor chains for steel mill555-29

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Plate
thickness 		Inner
Plate
depth 		Tensile
strength 		Average
tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		Lc
max 		t/T h2
max 		Q
min 		Q0 q
mm mm mm mm mm mm mm kN/lbf kN kg/m
P130F6 130  70  108  35  335  25.4/27.5 85  800/179840 880  149.7

Chain No. Attachment
dimension
h4 h5 L1 L2 d5
mm mm mm mm mm
P130F6 120  28.5  210  270  100

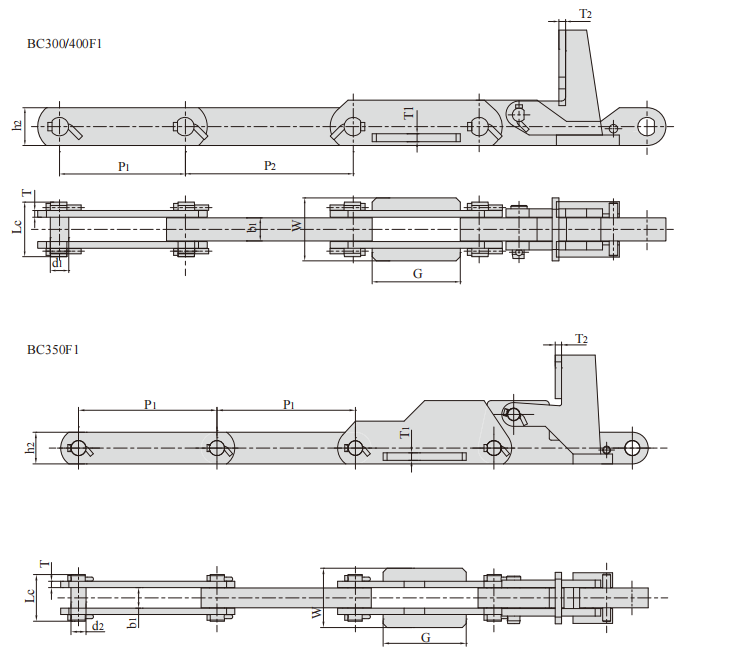

Block chains
conveyor chains for steel mill555-30

Chain No. Pitch Width
between
outer plates 		Pin
diameter 		Pin
length 		Plate
dimension 		Attachment
dimension 		Tensile
strength
P1 P2 b1
min 		d2
max 		Lc
max 		h2 T G W T1 T2 Q
min
mm mm mm mm mm mm mm mm mm mm mm kN/lbf
BC300/400F1 300  400  58  42  130  90  16  210  150  19  16  1270/285500
BC350F1 350  - 53  38  118  80  16  210  150  19  16  1080/242793

conveyor chains for steel mill555-31

Chain No. Pitch Pin
diameter 		Pin
length 		Plate
depth 		Plate
thickness 		Tensile
strength 		Average
tensile
strength 		Weight
per
meter
P d2
max 		L
max 		Lc
max 		h2
max 		t/T
max 		Q
min 		Q0 q
mm mm mm mm mm mm kN/lbf kN kg/m
BC41.3 41.3  7.94  29.4  - 15.9  15.9/6.4 45.0/10116 50.0  2.30
P100F113 100.0  12.00  30.5  36.0  30.0  12.0/6.0 100.0/22480 110.0  3.59
P127F4 127.0  22.86  51.5  - 40.0  20.0/10.0 170.0/38217 187.0  11.60
BC127F1 127.0  20.00  50.0  57.5  40.0  20.0/10.0 280.0/62946 308.0  7.90
BC127F3 127.0  22.00  47.5  76.0  40.0  20.0/9.5 240.0/53954 276.0  8.04
BC127F4 127.0  32.00  71.0  - 65.0  35.0/12.0 550.0/123645 632.5  22.83
BC150 150.0  32.00  78.0  86.0  65.0  32.0/16.0 637.0/143203 700.0  21.10
BC200F1 200.0  22.12  60.0  - 44.5  30.0/9.5 276.4/62137 304.0  10.23
BC200F2 200.0  26.45  66.0  - 55.0  28.0/12.7 534.9/120250 588.0  14.10
BC200F3 200.0  22.12  60.0  - 50.8  30.0/9.5 401.2/90193 441.0  11.80
BC200F6 200.0  25.40  62.5  - 50.8  24.8/12.7 356.0/80032 409.4  13.50
BC250F1 250.0  26.45  72.0  - 55.0  32.0/12.7 534.9/120250 588.0  14.60
BC250F2 250.0  26.45  72.0  - 50.8  32.0/12.7 454.0/102063 490.0  13.40
BC300F1 300.0  26.50  65.0  - 57.0  30.0/12.7 735.0/165234 808.0  14.40

conveyor chains for steel mill555-32

Chain No. Pitch Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d2
max 		Lc
max 		h2
max 		t/T
max 		G H h4 d4 Q
min 		q
mm mm mm mm mm mm mm mm mm kN/lbf kg/m
BC300F2 300.0  31.75  94.0  65.0  32.0/12.0 150.0  10.0  57.5  40.0  699.0/157141 18.20

conveyor chains for steel mill555-33

Chain No. Pitch Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Attachment
dimension 		Tensile
strength 		Weight
per
meter
P d2
max 		Lc
max 		h2
max 		t/T
max 		h L Q
min 		q
mm mm mm mm mm mm mm kN/lbf kg/m
BC500F2 500.0  54.00  144.0  110.0  60.0/25.0 110.0  35.0  2160.0/485587 55.90

conveyor chains for steel mill555-34

Chain No. Pitch Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Transverse
pitch 		Tensile
strength 		Weight
per
meter
P d2
max 		Lc
max 		h2
max 		t/T
max 		Pt Q
min 		q
mm mm mm mm mm mm kN/lbf kg/m
BC270F1-2 270.0  57.00  274.0  130.0  60.0/28.0 118.0  6000.0/1348854 171.00

conveyor chains for steel mill555-35

Chain No. Pitch Pin
diameter 		Pin
length 		Inner
plate
depth 		Plate
thickness 		Transverse
pitch 		Tensile
strength 		Weight
per
meter
P1 P2 d2
max 		L
max 		Lc
max 		h2
max 		t/T
max 		Pt Q
min 		q
mm mm mm mm mm mm mm mm kN/lbf kg/m
BC171.45F1-114.3-2 114.3  171.45  40.0  188.0  196.0  90.0  45.0/20.0 65.0  2000.0/45000 79.80

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Copyright © Hangzhou Ocean Industry Co., Ltd. All Rights Reserved

Privacy Policy

conveyor chains for steel mill555-45E-mail conveyor chains for steel mill555-46Tel conveyor chains for steel mill555-47 WeChat
conveyor chains for steel mill555-48
 conveyor chains for steel mill555-49
