Flame Cut Sprockets

Home >  Products >  Sprocket >  Flame Cut Sprockets

ALL PRODUCTS

Flame Cut Sprockets
Flame Cut Sprockets

Flame Cut Sprockets

Range of product:

ANSI:(1654/2069/3067/3075/A3075/ 3500/4000/4063/4500/5000/6050)

Inch size product (Apply to ANSI market)

Flame Cut Sprockets

Get a Quote
  • Description
  • Parameter
  • Related products
Description

Flame Cut Sprockets are sprockets manufactured through flame cutting technology, with multiple advantages and applications. The use of flame cutting technology ensures accurate pitch and long lifespan of the sprocket. These sprockets have undergone high-frequency hardening treatment, with a hardness of up to HRC4050, demonstrating good hardness, wear resistance, and long service life.

According to customer requirements, Flame Cut Sprockets can provide various types such as no hub, hub, finished hole, or tapered hole. In addition, customization can be made according to specific application requirements.

These sprockets range in thickness from 5/8 inches to 4 inches and are designed with a split structure for easy installation and maintenance. Some models also offer detachable sprockets for easy maintenance and replacement.

These sprockets are suitable for various application scenarios such as agricultural roller chains, steel detachable chains, and pivot chains. They are widely used in transmission systems and conveying components, and are important transmission components. Flame Cut Sprockets have been widely used in the field of industrial transmission due to their high precision, long lifespan, and wide applicability. Whether it is standard specifications or customized requirements, it can meet the diverse needs of different customers.

Parameter

Product Range

Standards  Series Type Size Range
ANSI 1654,PITCH-1.654" 1654C12-1654C60
2069,PITCH-2.609" 2609C 08-2609C60
3067,PITCH-3.067" 3067C10-3067C48
3075,PITCH-3.075" B3075C07-B3075C18
A3075,PITCH-3.075" A3075C08-A3075C60
3500,PITCH-3.500" 3500C10-3500C48
4000,PITCH-4.000" 4000C06-4000C16
4063,PITCH-4.063" 4063C06-4063C48
4500,PITCH-4.500" 4500C10-4500C48
5000,PITCH-5.000" 5000C10-5000048
6050,PITCH-6.500" 6050C06-6050C12

Flame Cut Sprockets

1.654 Flame cut sprockets for chains

62cast-062-62Steel-62A-HF62A-62H-072-162-R362

R432-RR432-962-LXS627-IS620-162R-US622-378R

402RS-US620

flame cut sprockets661-3

1654 plate thickness 3/4’’ Roller Diameter 13/16’’

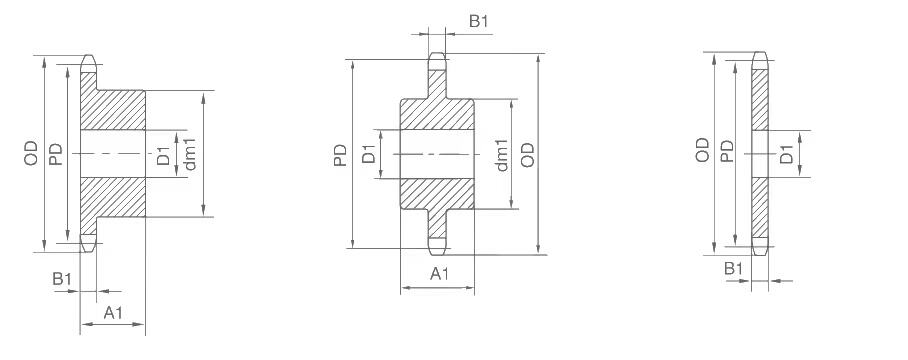

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
1654C12 12 6.39 15/16 23/4 41/4 31/8 15.8 1654A12 15/16 6.8
1654C13 13 6.91 15/16 31/4 43/4 31/2 19.4 1654A13 15/16 8.0
1654C14 14 7.43 15/16 31/4 43/4 31/2 20.6 1654A14 15/16 9.2
1654C15 15 7.96 15/16 31/4 43/4 31/2 22.0 1654A15 15/16 10.5
1654C17 17 9.00 15/16 31/4 43/4 31/2 24.0 1654A17 15/16 12.0
1654C19 19 10.05 15/16 31/4 43/4 31/2 28.0 1654A19 15/16 16.8
1654C20 20 10.57 15/16 31/4 43/4 31/2 30.0 1654A20 15/16 18.6
1654C24 24 12.67 11/4 33/4 51/2 43/5 49.0 1654A24 11/4 26.0
1654C26 26 13.72 11/4 33/4 51/2 43/8 53.0 1654A26 11/4 30.0
1654C30 30 15.82 11/4 33/4 51/2 43/8 65.0 1654A30 11/4 42.0
1654C36 36 18.98 11/4 33/4 51/2 43/8 82.0 1654A36 11/4 59.0
1654C54 54 28.45 11/4 33/4 51/2 43/8 125.0 1654A54 11/4 135.0
1654C60 60 31.60 11/4 33/4 51/2 43/8 138.0 1654A60 11/4 169

Flame Cut Sprockets

3067 Flame cut sprockets for chains

AX1568-568-JS3011-SS568-XX568-1803A-1803AB-MXS3011

IS3011-IS301-US3011-LXS3011-LXS3011M

3067 plate thickness 11/4’’ Roller Diameter 15/8’’

Catalog No. Z P.D Stock Bore Max Hub Hub Diameter  A1  wtLbs Catalog No.  Stock Bore   wt Lbs
3067C10 10 9.92 11/2 33/4 51/2 41/4 46 3067A10 11/2 28
3067C12 12 11.85 11/2 33/4 51/2 41/4 58 3067A12 11/2 40
3067C14 14 13.78 11/2 33/4 51/2 41/4 73 3067A14 11/2 53
3067C30 30 29.34 11/2 41/2 61/2 53/4 217 3067A30 11/2 240
3067C36 36 35.19 11/2 53/8 71/2 57/8 257 3067A36 11/2 290
3067C42 42 41.04 11/2 51/2 8 61/8 407 3067A42 11/2 340
3067C48 48 46.89 11/2 51/2 8 61/8 448 3067A48 11/2 381

A3075 Flame cut sprockets for chains

1030-R1033-R1035-1037-1539-SS40-LXS1031-AP13-LX1032

SS40Hyp-IS1030-IS1031-IS1032-IS1037-US1031-1190-1190

US1032

A3075 plate thickness 11/4’’ Roller Diameter 11/4’’

Catalog No. Z P.D Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
A3075C08 8 8.05 11/4 31/4 5 37/8 31 A3075A08 11/4 17.9
A3075C09 9 8.99 11/4 31/4 5 37/8 36 A3075A09 11/4 22.4
A3075C10 10 9.95 11/4 31/4 5 37/8 40 A3075A10 11/4 28
A3075C11 11 10.91 11/2 33/4 51/2 41/4 51 A3075A11 11/2 33
A3075C12 12 11.88 11/2 33/4 51/2 41/4 57 A3075A12 11/2 39
A3075C13 13 12.85 11/2 33/4 51/2 41/4 64 A3075A13 11/2 46
A3075C15 15 14.79 11/2 4 6 51/8 91 A3075A15 11/2 60
A3075C17 17 16.73 11/2 4 6 51/8 109 A3075A17 11/2 78
A3075C19 19 18.68 11/2 41/2 61/2 53/4 137 A3075A19 11/2 97
A3075C21 21 20.63 11/2 41/2 61/2 53/4 158 A3075A21 11/2 118
A3075C24 24 23.56 11/2 41/2 61/2 53/4 176 A3075A24 11/2 154
A3075C25 25 24.53 11/2 53/8 71/2 57/8 206 A3075A25 11/2 167
A3075C28 28 27.46 11/2 53/8 71/2 57/8 236 A3075A28 11/2 210
A3075C30 30 29.42 11/2 53/8 71/2 57/8 254 A3075A30 11/2 240
A3075C35 35 34.30 11/2 51/2 8 61/8 313 A3075A35 11/2 287
A3075C40 40 39.19 11/2 51/2 8 61/8 360 A3075A40 11/2 327
A3075C42 42 41.15 11/2 51/2 8 61/8 410 A3075A42 11/2 343
A3075C48 48 47.03 11/2 61/2 91/2 63/4 501 A3075A48 11/2 384
A3075C54 54 52.89 11/2 61/2 91/2 63/4 549 A3075A54 11/2 432
A3075C60 60 58.75 11/2 7 10 71/2 642 A3075A60 11/2 506

Flame Cut Sprockets

3500 Flame cut sprockets for chains

RX238-IS3514J-1616A-MXS3514-US3514-LXS3514-LXS3514M

3500 plate thickness 11/4’’ Roller Diameter 13/4’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
3500C10 10 11.33 11/2 33/4 51/2 41/4 54 3500A10 11/2 35
3500C12 12 13.52 11/2 33/4 51/2 41/4 70 3500A12 11/2 51
3500C14 14 15.73 11/2 33/4 51/2 41/4 88 3500A14 11/2 60
3500C30 30 33.48 11/2 4 6 51/8 312 3500A30 11/2 253
3500C36 36 40.16 11/2 4 6 51/8 345 3500A36 11/2 270
3500C42 42 46.84 11/2 51/2 8 61/8 446 3500A42 11/2 379
3500C48 48 53.52 11/2 51/2 8 61/8 517 3500A48 11/2 450

4063 Flame cut sprockets for chains

1240-1244-RC1245-R1248-SS124

LXS1245-SS124D-SS124DP-IS1242-IS1425

4063 plate thickness 13/4’’ Roller Diameter 13/4’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
4063C06 6 8.13 15/16 21/2 4 4 34 4063A06 15/16 26
4063C07 7 9.36 11/4 33/4 51/4 43/4 51 4063A07 11/4 34
4063C08 8 10.62 11/2 41/2 61/2 5 78 4063A08 11/2 44
4063C09 9 11.88 11/2 41/2 61/2 5 89 4063A09 11/2 55
4063C10 10 13.15 11/2 41/2 61/2 5 101 4063A10 11/2 67
4063C11 11 14.42 11/2 41/2 61/2 5 115 4063A11 11/2 81
4063C12 12 15.70 11/2 51/4 7 6 140 4063A12 11/2 96
4063C13 13 16.98 11/2 51/4 7 6 155 4063A13 11/2 111
4063C14 14 18.26 11/2 51/4 7 6 174 4063A14 11/2 130
4063C15 15 19.54 11/2 51/4 7 6 192 4063A15 11/2 148
4063C16 16 20.83 11/2 51/2 8 61/4 230 4063A16 11/2 168
4063C18 18 23.40 11/2 51/2 8 61/4 275 4063A18 11/2 213
4063C20 20 25.97 11/2 51/2 8 61/4 300 4063A20 11/2 263
4063C21 21 27.26 11/2 51/2 8 61/4 319 4063A21 11/2 289
4063C24 24 31.12 11/2 51/2 8 61/4 387 4063A24 11/2 377
4063C25 25 33.42 11/2 6 9 61/4 426 4063A25 11/2 409
4063C28 28 36.29 11/2 6 9 61/4 494 4063A28 11/2 479
4063C30 30 38.87 11/2 7 10 63/4 583 4063A30 11/2 498
4063C35 35 45.33 11/2 7 10 63/4 729 4063A35 11/2 620
4063C40 40 51.78 11/2 71/2 11 73/4 932 4063A40 11/2 721
4063C48 48 62.12 11/2 71/2 11 73/4 1078 4063A48 11/2 867

Flame Cut Sprockets

4500 Flame cut sprockets for chains

RO625-B635-X635-1350-450SX-450SXX-IS4522-1340RX

LXS4522M

4500 plate thickness 13/4’’ Roller Diameter 21/4’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
4500C 10 10 14.56 11/2 4 61/2 5 111 4500A10 11/2 87
4500C 12 12 17.39 11/2 4 61/2 5 148 4500A12 11/2 119
4500C 14 14 20.22 11/2 4 61/2 5 188 4500A14 11/2 159
4500C 30 30 43.05 11/2 53/8 71/2 57/8 592 4500A30 11/2 542
4500C 36 36 51.63 11/2 53/8 71/2 57/8 764 4500A36 11/2 715
4500C 42 42 60.22 11/2 61/2 91/2 71/4 884 4500A42 11/2 776
4500C 48 48 68.81 11/2 71/2 11 73/4 1174 4500A48 11/2 963

5000 Flame cut sprockets for chains

RX1207-RO1205-A1302-JS5031-1510XX-1602A-1602AA

LXS1245-SS124D-SS124DP-IS1242-IS1425



5000 plate thickness 21/4’’ Roller Diameter 21/2’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
5000C10 10 16.18 11/2 41/2 61/2 51/2 160 5000A10 11/2 131
5000C12 12 19.32 11/2 41/2 61/2 51/2 215 5000A12 11/2 187
5000C14 14 22.47 11/2 53/8 71/2 57/8 298 5000A14 11/2 254
5000C30 30 47.84 11/2 6 9 63/4 809 5000A30 11/2 730
5000C36 36 57.37 11/2 7 10 81/2 1161 5000A36 11/2 1025
5000C42 42 66.91 11/2 7 10 81/2 1245 5000A42 11/2 1109
5000C48 48 76.45 11/2 71/2 11 101/4 2005 5000A48 11/2 1794

Flame Cut Sprockets

2609 Flame cut sprockets for chains

78-H74-75-H75-H78-H78LR-H78RT-H78SR-88-188-S188

S78-R588-RR588-R778-998-IS880-81X-IS882-US881

LXS881-LXS886-LXS887-LXS882-488-XS578-SS188-C188

US278R-US882-578R-588R

flame cut sprockets661-4

 2609 plate thickness 7/8’’ Roller Diameter 7/8’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
2609C08 8 6.82 15/16 31/4 43/4 31/8 21 2609A08 15/16 9.0
2609C09 9 7.63 11/4 37/16 51/4 37/8 29 2609A09 11/4 11.3
2609C10 10 8.44 11/4 37/16 51/4 37/8 31 2609A10 11/4 13.9
2609C11 11 9.26 11/4 37/16 51/4 37/8 34 2609A11 11/4 16.7
2609C12 12 10.08 11/4 37/16 51/4 37/8 37 2609A12 11/4 19.8
2609C13 13 10.90 11/4 33/4 51/2 41/2 46 2609A13 11/4 23.0
2609C14 14 11.72 11/4 33/4 51/2 41/2 49 2609A14 11/4 27.0
2609C15 15 12.55 11/2 33/4 51/2 41/2 53 2609A15 11/2 30.0
2609C17 17 14.20 11/2 33/4 51/2 41/2 62 2609A17 11/2 39.0
2609C19 19 15.85 11/2 41/2 61/2 53/8 90 2609A19 11/2 50.0
2609C21 21 17.51 11/2 41/2 61/2 53/8 101 2609A21 11/2 61.0
2609C24 24 19.99 11/2 41/2 61/2 53/8 119 2609A24 11/2 79.0
2609C25 25 20.82 11/2 41/2 61/2 53/8 124 2609A25 11/2 84.0
2609C28 28 23.31 11/2 41/2 61/2 53/8 132 2609A28 11/2 105.0
2609C30 30 24.96 11/2 41/2 61/2 53/8 150 2609A30 11/2 123.0
2609C35 35 29.11 11/2 41/2 61/2 53/8 170 2609A35 11/2 166
2609C40 40 33.25 11/2 415/16 71/4 63/4 226 2609A40 11/2 216.0
2609C42 42 34.91 11/2 415/16 71/4 63/4 240 2609A42 11/2 240.0
2609C46 46 38.31 11/2 415/16 71/4 63/4 258 2609A46 11/2 286.0
2609C54 54 44.87 11/2 415/16 71/4 63/4 368 2609A54 11/2 302.0
2609C60 60 49.85 11/2 415/16 71/4 63/4 388 2609A60 11/2 322.0

Flame Cut Sprockets

3075 Flame cut sprockets for chains

H82-WH82-WR82-103-131-S131-WS82-WS82H-SS131-527R

527RX-C9103-6131-4103-C131-382

flame cut sprockets661-5

B3075  plate thickness 11/8’’ Roller Diameter 17/32’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
B3075C07 7 7.09 13/16 215/16 41/2 37/8 24 B3075A07 13/16 12.6
B3075C08 8 8.04 11/4 33/4 51/4 41/8 34 B3075A08 11/4 16
B3075C09 9 8.99 11/4 33/4 51/4 41/8 38 B3075A09 11/4 20
B3075C10 10 9.95 11/4 33/4 51/4 41/8 43 B3075A10 11/4 25
B3075C11 11 10.91 11/4 315/16 53/4 43/8 54 B3075A11 11/4 30
B3075C12 12 11.88 11/4 315/16 53/4 43/8 60 B3075A12 11/4 36
B3075C13 13 12.85 11/4 315/16 53/4 43/8 66 B3075A13 11/4 42
B3075C14 14 13.82 11/4 315/16 53/4 43/8 72 B3075A14 11/4 48
B3075C15 15 14.79 11/2 41/2 61/2 55/8 94 B3075A15 11/2 54
B3075C16 16 15.76 11/2 41/2 61/2 55/8 102 B3075A16 11/2 62
B3075C17 17 16.73 11/2 41/2 61/2 55/8 110 B3075A17 11/2 70
B3075C18 18 17.71 11/2 41/2 61/2 55/8 119 B3075A18 11/2 79

Flame Cut Sprockets

4000 Flame cut sprockets for chains

H124-W124-WS124-WR124-WH124

4000 plate thickness 11/2’’ Roller Diameter 11/2’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
4000C06 6 8.00 15/16 31/4 43/4 45/8 36 4000A06 15/16 21
4000C07 7 9.22 1 315/16 53/4 43/4 52 4000A07 1 28
4000C08 8 10.45 1 315/16 53/4 43/4 61 4000A08 1 37
4000C09 9 11.70 1 315/16 53/4 43/4 70 4000A09 1 46
4000C10 10 12.94 1 315/16 53/4 43/4 79 4000A10 1 55
4000C11 11 14.20 11/2 41/4 61/4 43/4 95 4000A11 11/2 68
4000C12 12 15.45 11/2 41/4 61/4 43/4 107 4000A12 11/2 80
4000C13 13 16.72 11/2 41/4 61/4 43/4 120 4000A13 11/2 93
4000C14 14 17.98 11/2 41/4 61/4 43/4 135 4000A14 11/2 108
4000C15 15 19.24 11/2 43/8 63/4 6 168 4000A15 11/2 124
4000C16 16 20.50 11/2 43/8 63/4 6 185 4000A16 11/2 141

6050 Flame cut sprockets for chains

C132-A132-A132WS-WS132-C132M-C132W-SX150-SXA150

150X-6150-W157-WH157-WR157

6050 plate thickness 23/4’’ Roller Diameter 123/32’’

Catalog No. Z P.D   Stock Bore Max Bore Hub Diameter A1 wt Lbs. Catalog No. Stock Bore wt Lbs
6050C06 6 12.10 11/2 41/2 61/2 6 119 6050A06 11/2 90
6050C07 7 13.95 11/2 41/2 61/2 6 149 6050A07 11/2 120
6050C08 8 15.81 11/2 41/2 61/2 6 182 6050A08 11/2 153
6050C09 9 17.69 11/2 53/8 71/2 63/8 236 6050A09 11/2 192
6050C10 10 19.58 11/2 53/8 71/2 63/8 278 6050A10 11/2 235
6050C11 11 21.47 11/2 53/8 71/2 63/8 326 6050A11 11/2 283
6050C12 12 23.38 11/2 53/8 71/2 63/8 378 6050A12 11/2 334





Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Copyright © Hangzhou Ocean Industry Co., Ltd. All Rights Reserved

Privacy Policy

flame cut sprockets661-15E-mail flame cut sprockets661-16Tel flame cut sprockets661-17 WeChat
flame cut sprockets661-18
 flame cut sprockets661-19
