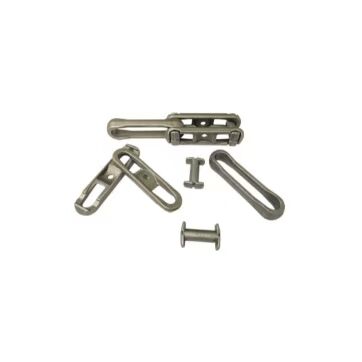

Project Type
|
P |
C |
a |
| XT80 |
80(76.2) |
1.5-2.5 |
≥9° |
| XT100 |
100 |
1.5-2.5 |
≥9° |
| XT160 |
160 |
2-4 |
≥6° |
Chain pitch: t=80176.2mm
Chain tensile load: 110KN
Allowable chain tension: 10KN
Maximum load of carriage: 300kg
Allowable load of carriage: 125Kg
Track: G10 or G12
Minimum horizontal turning radius: R305
Minimum vertical bending radius: R1500
Chain pitch: t=100mm
Chain tensile load: 220KN
Allowable chain tension: 15KN
Ultimate load of carriage: 500kg
Allowable load of carriage: 250Kg
Track: G12 or G14
Minimum horizontal turning radius: R317
Minimum vertical bending radius: R2000
Chain pitch: t=160mm
Chain tensile load: 400KN
Allowable chain tension: 30KN
Ultimate load of carriage: 800kg
Allowable load of carriage: 500Kg
Track: G14 or G16
Minimum horizontal turning radius: R404
Minimum vertical bending radius: R3150
