Description

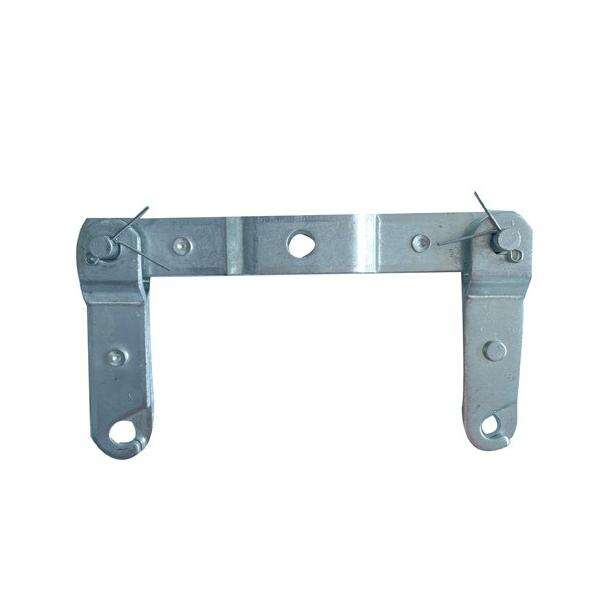

A hanger plate is a component that connects to the conveyor chain on one end and to the suspended item on the other. Lifting plates can be categorized into two types: fixed and detachable. The QXT-240 and QXT-250 models utilize fixed lifting plates that are permanently attached to the conveyor chain. All other lifting plates are of the detachable variety. Detachable hanger plates come in three structural designs: standard, Y-type, and beam-style.

Parameter

Project Type		Standard				Y-type					Beam-style
Project Type		L	d	B	b	L	d	A	B	b	L	d	A	B	b
QXT-150	Hanger plate type	88	8	16	10	221	8.5	150	16	10	88	10	150	20	14
QXT-150	Allowable hanger weight	8kg				8kg					15kg
QXT-200	Hanger plate dimensions	120	8.5	18	10	234	8.5	200	18	12	120	12	200	18	10
QXT-200	Allowable hanger weight	30kg				30kg					55kg
QXT-250	Hanger plate dimensions	120	10.5	20	12						110	14.5	250	20	12
QXT-250	Allowable hanger weight	50kg									90kg
QXT-300	Hanger plate dimensions	130	12.5	27	15						130	16.5	300	27	15
QXT-300	Allowable hanger weight	100kg									180kg
Maximum hanger angle		45°				90°					45°
