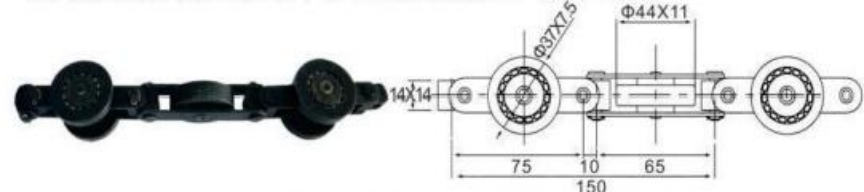

QXT150A type {8KG double chain plate single guide wheel}
There are 2 running wheels, a guide wheel and 2 cross sections every 150mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT150B type {8KG double chain plate double guide wheel}
There are 2 running wheels, 2 guide wheels and 2 cross sections every 150mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT200A type {30KG double chain plate Single guide wheel}
There are 2 running wheels, a guide wheel and 2 cross sections every 200mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT200B type {30KG double chain plate double guide wheel}
There are 2 running wheels, 2 guide wheels and 2 cross sections every 200mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT206A type {30KG double chain plate single guide wheel}
There are 2 running wheels, a guide wheel and 2 cross sections every 206mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT206B type {30KG double chain plate double guide wheel}
There are 2 running wheels, two guide wheels and 2 cross sections every 206mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT 240A type {50KG double chain plate single guide wheel}
There are 2 running wheels, 2 guide wheels and 2 cross sections every 240mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Its running wheels and guide wheels both adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT 240B type {50KG double chain plate double guide wheel}
There are 2 running wheels, 2 guide wheels and 2 cross sections every 240mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Its running wheels and guide wheels both adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT 250A type {50KG double chain plate single guide wheel}
There are 2 running wheels, a guide wheel and 2 cross sections every 250mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Its running wheels and guide wheels both adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT 250B type {50KG double chain plate double guide wheel}
There are 2 running wheels, two guide wheels and 2 cross sections every 250mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. The chain plate is made of special high-quality steel with moderate quenching hardness. A tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT 300A type {100KG double chain plate single guide wheel}
There are 2 running wheels, a guide wheel and 2 cross sections every 300mm. The running wheel and the guide wheel are each connected by double chain plates through cross joints and pins. After a detachable hanging plate is hung in the middle of the running wheel pin, objects can be suspended and transported. Their running wheels and guide wheels all adopt ball wheel structures. Link Made of special high-quality steel with moderate quenching hardness, a tensile test of three times the allowable tensile force is specified before leaving the factory.
QXT series floor chain
Note: The pitch of the push rods and fixed hanging plates on each link of the floor chain can be customized according to customer requirements.
