Description

O-ring agricultural machinery chains mainly include C2060 OR series and C2060 OR series chains with accessories.

With the same structure as the standard O-ring roller chain, O-ring is installed between the outer and inner chain links to prevent grease loss and sundries from entering the gap of the chain shaft sleeve during use. It is suitable for the use environment with high wear resistance requirements and unable to lubricate frequently.The service life is more than 1 time that of the regular chain.

The products are mainly used in full feeding rice harvesting equipment.

Parameter

O-Ring agricultural chains

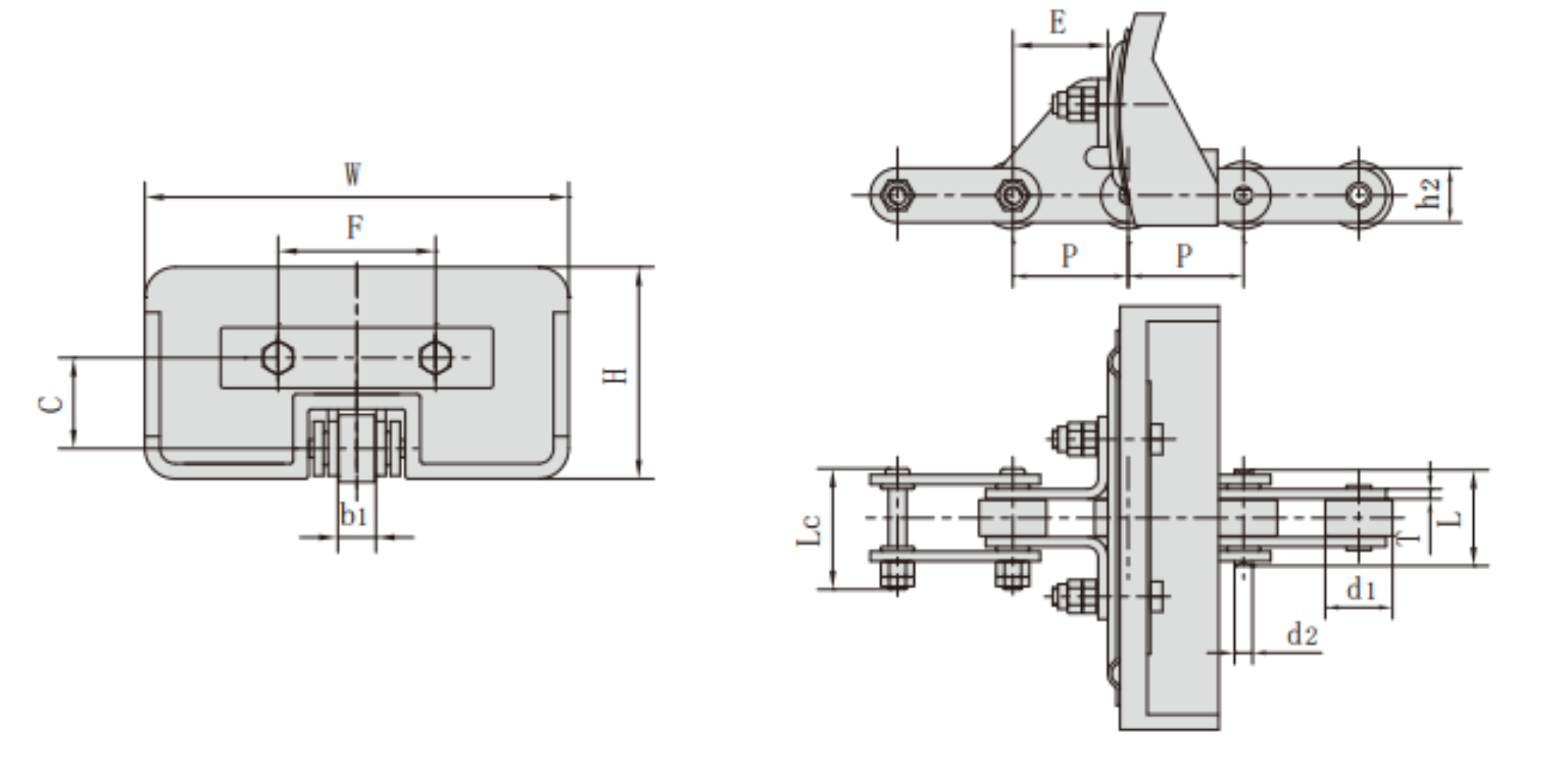

Chain No	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length			Plate dimension		Tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L1 max	L2 max	Lc max	h2 max	T max	Q min	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
C2040HOR-WK1F1	25.4	7.95	7.85	3.96	20.5	20.5	26.0	12	2.03	14.1/3170	0.78
C2060F77 OR	38.1	11.91	12.57	5.95	28.5	30.1	37.1	17	2.42	39.2/8813	1.41
