Description

PTO Shaft also known as power take-off shaft, is a mechanical component used to transmit power from agricultural power sources such as tractors to agricultural machinery or other equipment. It has various types, including those with quick-release push pins for easy connection and disconnection. Made of carbon steel, it has high strength and wear resistance and is widely used in agricultural operations such as harvesting, sowing and fertilizing.

Parameter

PTO drive shaft Series S

pto shaft 306-3

Type U-joint Joint simple Splined
yoke 		Tube yoke Tube
Inner outer Inner outer Inner outer
1.1.png 1.2.png 1.3.png 1.4.png 1.5.png 1.6.png 1.7.png
1  2  3  4  5  6  7  8
S230 2000723
30.18×106.3 		40023001  40023002  101G723138 102S23251 103S23261 301S510 301S614
S240 2000824
34.9×106.3 		40024001  40024002  101G824138 102S24251 103S24261 301S510 301S614
S2500
(036) 		2000036
36×89 		40036001  40036002  101G036138 102S036251 103S036261 301S510 301S614
S2600
(026) 		2000026
42×104 		40026001  40026002  101G026138 102S026261 103S026271 301S614 302S715
Operating torque
Type 540 tr./min 1000 tr./min Nm
kw pk Nm kw pk Nm
CV CV
S230 36  56  780  75  92  550  3400
S240 45  77  890  82  110  780  4200
S2500 66  90  1175  102  139  975  6000
S2600 79  107  1400  122  166  1165  7800

PTO drive shaft Series G

pto shaft 306-4

Type U-joint Joint simple Splined
yoke		 Tube yoke Tube
Inner outer Inner outer Inner outer
2.1.png 2.2.png 2.3.png 2.4.png 2.5.png 2.6.png 2.7.png
1  2  3  4  5  6  7  8
G50 2000500
30.22×80		 4005001  4005002  101500138  102G35012 312G35Z12 301G35Z12 300C553
G60 2000600
30.22×92		 4006001  4006002  101622138  102G35012 312G35Z12 301G35Z12 300C553
G70 20007N
35×94		 4007001  4007002  1017N138 102G35012 312G40Z14 301G40Z14 300C613
G80 2000824
34.9×106.3		 4008001  4008002  101824138  102G35012 312G45Z16 301G45Z16 300C613
G90 2000900
41×108		 4009001  4009002  101900138  102G35012 312G45Z16 301G45Z16 300C695
Operating torque
Type 540tr./min 1000tr./min Nm
kw pk Nm kw pk Nm
CV CV
G05 35  47  620  54  74  520  1050
G06 47  64  830  74  100  710  1450
G07 55  75  970  87  118  830  1800
G08 70  95  1240  110  150  1050  2250
G09 88  120  1560  140  190  1340  2900



Shear bolt torque limiter Series SB

pto shaft 306-5

Series
W-S 		Series
T-G 		3.1.png W L B A R DIN 931
CL.8.8 		Torque
Nm 		Type Code
W200 23.8×61 68  99  19  13/8"-Z6 42  M6 780  SBW220138426 500W220138426
M8 1400  SBW220138428 500W220138428
13/8"-Z21 SBW220121428 500W220121428
W210
W2300S 		27×74.6 83  107  19  13/8"-Z6 48  M8 1600  SBW421138488 500W421138488
52  1730  SBW421138528 500W421138528
56  1860  SBW421138568 500W421138568
13/8"-Z21 SBW421121568 500W421121568
W2400
(035) 		32×76 86  131  19  13/8"-Z6 48  M8 1600  SBW035138488 500W035138488
M10 2500  SBW035138481 500W035138481
56  M8 1860  SBW035138568 500W035138568
M10 2920  SBW035138561 500W035138561
64  M8 2130  SBW035138648 500W035138648
13/8"-Z21 56  M10 2920  SBW035121561 500W035121561
13/4"-Z6 48  2500  SBW035134481 500W035134481
S2500
(036) 		36×89 100  141  24  13/8"-Z6 48  M10 2500  SBW036138481 500W036138481
56  2920  SBW036138561 500W036138561
64  M8 2130  SBW036138648 500W036138648
13/8"-Z21 48  M10 2500  SBW036121481 500W036121481
13/4"-Z6 56  2920  SBW036134561 500W036134561
64  3330  SBW036134641 500W036134641
S2600
(026) 		42×104 115  145  24  13/8"-Z6 56  M12 4200  SBW026138561.2 500W026138561.2
13/8"-Z21 SBW026121561.2 500W026121561.2
13/4"-Z6 64  4800  SBW026134341.2 500W026134341.2
13/4"Z20 SBW026120641.2 500W026120641.2
T10 22×54 62  95  19  13/8"-Z6 35  M6 650  SB110138 500110138
13/8"-Z21 SB110121 500110121
T20 23.8×61 68  99  19  13/8"-Z6 48  M6 900  SB220138 500220138
13/8"-Z21 SB220121 500220121
T30 27×70 77  102  19  13/8"-Z6 40  M8 1300  SB311138 500311138
13/8"-Z21 SB311121 500311121
T40 27×74.6 83  107  19  13/8"-Z6 55  M8 1700  SB421138 500421138
13/8"-Z21 SB421121 500421121
T50-G50 30.22×80 95  111  21  13/8"-Z6 46  M10 2100  SB500138 500500138
13/8"-Z21 SB500121 500500121
13/4"-Z6 SB500134 500500134
T60-G60 30.22×92 101  137  22  13/8"-Z6 55  M12 2500  SB622138D 500622138D
13/8"-Z21 SB622121D 500622121D
13/4"-Z6 SB622134D 500622134D
13/4"-Z20 SB622120D 500622120D
T7N-G70 35×94 105  143  22  13/8"-Z6 49  M12 3000  SB7N138D 5007N138D
13/8"-Z21 SB7N121D 5007N121D
13/4"-Z6 SB7N134D 5007N134D
13/4"-Z20 SB7N120D 5007N120D
T80-G80 34.9×106.3 125  148  20  13/8"-Z6 57  M12 3500  SB824138D 500824138D
13/8"-Z21 SB824121D 500824121D
13/4"-Z6 SB824134D 500824134D
13/4"-Z20 SB824120D 500824120D
Note:available on demand with interfering clamp bolt
The torque limiterintemupts the power transmission when the torque e xceeds theseting value,by shearing the bolt.Transmission is restored by inserting a new bolt in the device.



Shear bolt torque limiter Series SB

pto shaft 306-6

1  Yoke (type 10) 4  Hub1 3/8"-Z6 (type 50)
Yoke (type 20) Hub1 3/8"-Z21 (type 50)
Yoke (type 30) Hub1 3/4"-Z6 (type 50)
Yoke (type 40) Hub1 3/8"-Z21 (type 60)
Yoke (type 50) Hub1 3/8"-Z6 (type 60)
Yoke (type 60) Hub1 3/4"-Z6 (type 60)
Yoke (type 7N) Hubl 3/4"-Z20(type 60)
Yoke (type 80) Hub1 3/8"-Z21 (type 7N)
2  Ball 7/32"(type 10-30) Hub1 3/8"-Z6 (type 7N)
Ball 1/4"(type 10-30) Hub1 3/4"-Z6 (type 7N)
Ball 5/16"(type 60-80) Hub1 3/4"-Z20(type 7N)
3* Push-pin set 13/8" Hub1 3/8"-Z21 (type 80)
Push-pin set 13/4" Hub1 3/8"-Z6 (type 80)
4  Hub1 3/8"-Z6 (type 10) Hub13/4"-Z6 (type 80)
Hubl 3/8"-Z21 (type 10) Hubl 3/4"-Z20(type 80)
Hub1 3/8"-Z6 (type 20) 5  Bolt M6×45+nut 8.8
Hubl 3/8"-Z21 (type 20) Bolt M6×40+nut 8.8
Hub1 3/8"-Z6 (type 30) Bolt M8×50+nut 8.8
Hubl 3/8"-Z21 (type 30) Bolt M10×55+nut 8.8
Hubl 3/8"-Z6 (type 40) Bolt M10×60+nut 8.8
Hubl 3/8"-Z21 (type 40) Bolt M12×65+nut 8.8
 -                                        - 6  Greaser M8×1(type 10-50)
Greaser M10×1(type 60-80)



Ratchet torque limiter Series SA

pto shaft 306-7

Series
WS		 Series
T-G		 5.1.png Limit. Range torque
Nm		 L1 L B A Type* Code
W100 22×55 S1 1  300  38  119  20  13/8''-Z6
13/8''-Z21		 SAW010--S1 600W010--S1
S2 2  600  57  138  SAW010--S2 600W010--S2
W200 23.8×61 S1 1  300  38  119  SAW220--S1 600W220--S1
S2 2  600  57  138  SAW220--S2 600W220--S2
S3 3  900  76  157  SAW220--S3 600W220--S3
W210
W2300S		 27×74.6 S2 2  600  57  142  SAW421--S2 600W421--S2
S3 3  900  76  161  SAW421--S3 600W421--S3
S4 4  1200  95  180  SAW421--S4 600W421--S4
W2400
(035)		 32×76 S3 3  900  76  165  SAW035--S3 600WV035--S3
S4 4  1200  95  184  SAW035--S4 600W035--S4
S5 5  1500  114  203  SAW035--S5 600W035--S5
W2500
(036)		 36×89 S3 3  900  76  171  SAW036--S3 600W036--S3
S4 4  1200  95  190  SAW036--S4 600W036--S4
S5 5  1500  114  209  SAW036--S5 600W036--S5
T10 22×54 S1 1  300  38  112  SA110--S1 600110--S1
S2 2  600  57  141  SA110--S2 600110--S2
T20 23.8×61 S1 1  300  38  112  SA220--S1 600220--S1
S2 2  600  57  141  SA220--S2 600220--S2
S3 3  900  76  171  SA220--S3 600220--S3
T30 27×70 S2 2  600  57  141  SA311--S2 600311--S2
S3 3  900  76  171  SA311--S3 600311--S3
T40 27×74.6 S2 2  600  57  141  SA421--S2 600421--S2
S3 3  900  76  171  SA421--S3 600421--S3
S4 4  1200  95  190  SA421--S4 600421--S4
T50 30.22×80 S3 3  900  76  209  SA500--S3 600500--S3
S4 4  1200  95  190  SA500--S4 600500--S4
S5 5  1500  114  209  SA500--S5 600500--S5
T60 30.22×92 S3 3  900  76  209  SA622--S3 600622--S3
S4 4  1200  95  190  SA622--S4 600622--S4
S5 5  1500  114  209  SA622--S5 600622--S5
The torque initerisativatedwhenthe operaingtorque eceedsthesetng value.During the limiting phase,thedeice tansmtsreduced powerinpulses.
The elimination ofthe etemal cause and the reduction ofthe PTO speed allows the nomalpo wertransmission to be re-established.When the limiteris
activated,it is recommended to disconnect the PTO to avoid unnecessary we ar and overheating.
Type *:Spline manutacture is divided into two13/8"-26、13/8"-Z21 For example:SA10138S1 、SA10121S1



Ratchet torque limiter Series SA

pto shaft 306-8

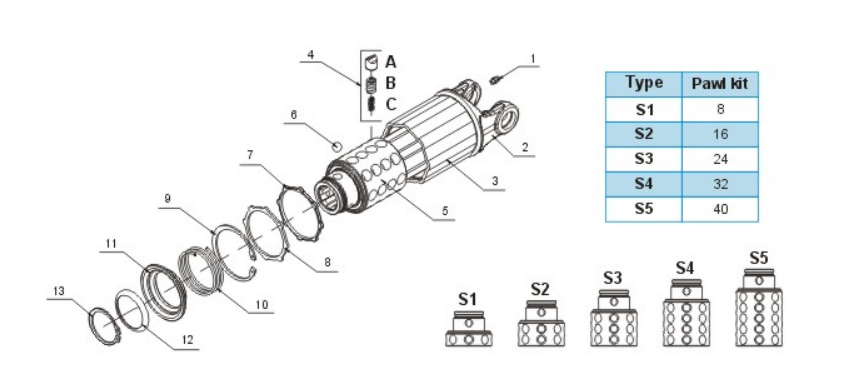

1  Greaser M6×1 5  Hub S1=1 3/8''-Z613/8"-Z21
2  Yoke (type 10)S1 Hub S2=1 3/8''-Z613/8"-Z21
Yoke (type 20)S1 S2 S3 Hub S3=1 3/8"-Z613/8"-Z21
Yoke (type 30)S2 S3 Hub S4=1 3/8”-Z613/8"-Z21
Yoke (type 40)S2 S3 S4 Hub S5=1 3/8”-Z613/8"-Z21
Yoke (type 50)S3 S4 S5 6  Ball 1/2”
Yoke (type 60)S3 S4 S5 7  Retaining washer
3  tube=S1 L=38 8  Grease protecion
tube=S2 L=57 9  Circlip
tube=S3 L=76 10  Collar spring
tube=S4 L=95 11  Sliding sleeve collar
tube=S5 L=114 12  Snap ring
4* Ratchet teeth and springs set:
A=Ratchet tooth
B=Outer spring
C=Inner spring 		13  Circlip



Overrunning clutch Series RA1、RA1S

pto shaft 306-9

Series Type *1 Torque
Nm 		L1 L B A Code
T10 22×54 1RA1-- 2400  43  125  21  13/8''-Z6
13/8''-Z21 		6001RA1--
T20 23.8×61 2RA1-- 48  130  6002RA1--
T30 27×70 3RA1-- 50  132  6003RA1--
T40 27×74.6 4RA1-- 56  138  6004RA1--
T50 30.22×80 5RA1-- 59  141  6005RA1--
T60 30.22×92 6RA1-- 66  148  6006RA1--
T7N 35×94 7NRA1-- 66  149  6007NRA1--



pto shaft 306-10

Type*2 Torque
Nm 		L1 L G A B Code
RA1S 2400  38  125  21  13/8"-Z6 13/8"-Z6 --RA1S--
13/8"-Z21 13/8"-Z21
Note:avalable upon request for anti-clock wise drecfon of rotation.The device is used to transmit the motion in a single rotion dredion,when the tractor drives the implement.During the stopping phase.with the tractor PTO disengged and the imple ment sil mouing,the transmission is disconneded.This device is useful for operating machinery with high rotation inetia because during the stopping phase,the tractor PTO is dis-engaged from the diven machine.
Type*1:Spline manufacture is divided into two13/8''-z6?13/8''-z21 For example:1RAI138?1RA121
Type*2:Spline manufacture is divided into two13/8'' -z6?13/8-z21 For example:138RAS1138?121RAS1121



Overrunning clutch SERIES RA1、RA1S

pto shaft 306-11

1  Greaser M6×1
2  Yoke (type 10)
Yoke (type 20)
Yoke (type 30)
Yoke (type 40)
Yoke (type 50)
Yoke (type 60)
Yoke (type 7N)
3  tube=56
4  A=Ratchet
B=spring
5  Hub=1  3/8''-Z6  1  3/8"-Z21
6  Spring
7  Pins
8  Retaining washer
9  Grease protedion
10  Cirdip
2.1  Hub=1  3/8"-Z6  1  3/8"-Z21



Overrunning clutch Series RA2、RA2S

pto shaft 306-12

Series Type 2.1.png L1 L D B A Torque
Nm		 Code
T10 1RA2-- 22×54 54  149  90  20  13/8"-Z6
13/8"-Z21		 3000  6001RA2138
6001RA2121
T20 2RA2-- 23.8×61 54  149  6002RA2138
6002RA2121
T30 3RA2-- 27×70 54  167  6003RA2138
6003RA2121
T40 4RA2-- 27×74.6 54  167  6004RA2138
6004RA2121
T50 5RA2-- 30.22×80 54  157  6005RA2138
6005RA2121
T60 6RA2-- 30.22×92 54  167  6006RA2138
6006RA2121
T7N 7NRA2-- 35×94 54  167  6007NRA2138
6007NRA2121



pto shaft 306-13

Type Torque
Nm 		L1 L2 L A1 A B D Code
RA2S 3800  54  38  155  13/8°-Z6
13/8°-Z21 		20  90  -
-
Note:available upon request for anti-clock wise direction of rotation.The device is used to transmit the motion in a single rotation diretion,when the tradtor drives the implement.During the stopping phase,wih the tractor PTO disengaged and the implement still moving,the transmission is disconnnectded.This device is useful for operating machinery with high rotation inetia because during the stopping phase,the tractor PTO is dis-engaged fom the driven machine.



pto shaft 306-14

1  Greaser M6×1
2  Yoke (type 10)
Yoke (type 20)
Yoke (type 30)
Yoke (type 40)
Yoke (type 50)
Yoke (type 60)
Yoke (type 7N)
3  Tube=54
4  A=Ratchet
B=Leaf spring
5  Ball 1/2''
6  Hub=1 3/8''-Z6  1  3/8"-Z21
7  Retaining washer ring
8  Spring pushing
9  Cirdip
10  Collar spring
11  Sliding sleeve collar
12  Cirdip
2.1  Hub=1 3/8''-Z6 1 3/8"-Z21



Friction torque limiter Series FFV1-FFV2

pto shaft 306-15

Series
WS 		Series
T-G 		13.1.png F 1-F2 A L D W Torque
Nm   max. 		Type Code
W210 27×74.6 F1 13/8''-Z6 143  180  90  900  FFVW210138 701W210138
W2400
(035) 		32×76 F2 13/8"-Z6 143  200  90  1200  FFV2W035138 702W035138
13/8''-Z21 FFV2W035121 702W035121
13/4''-Z6 149  FFV2W035134 702W035134
13/4"-Z20 FFV2W035120 702W035120
T40 27×74.6 F1 13/8''-Z6 155  180  83  900  FFV421138 701421138
13/8''-Z21 FFV1421121 701421121
F2 13/8"-Z6 154  200  1200  FFV2421138 702421138
13/8''-Z21 FFV2421121 702421121
T50 30.22×80 F1 13/8"-Z6 153  180  95  900  FFVW1500138 701500138
13/8"-Z21 FFV500121 701500121
F2 13/8''-Z6 200  1200  FFV2500138 702500138
13/8''-Z21 FFV2500121 702500121
T60 30.22×92 F1 13/8''-Z6 162  180  101  900  FFW622138 701622138
13/8''-Z21 FFW1622121 701622121
F2 13/8''-Z6 161  200  1200  FFV2622138 702622138
13/8"-Z21 FFV2622121 702622121
13/4"-Z6 FFV2622134 702622134
13/4"-Z20 FFV2622120 702622120
T7N 35×94 F2 13/8''-Z6 158  200  105  1200  FFV27N138 7027N138
13/8''-Z21 FFV27N121 7027N121
13/4''-Z6 FFV27N134 7027N134
13/4''-Z20 FFV27N120 7027N120
T80 34.9×106.3 F2 13/8"-Z6 168  200  125  1200  FFV2824138 702824138
13/8''-Z21 FFV2824121 702824121
13/4''-Z6 FFV2824134 702824134
13/4"-Z20 FFV2824120 702824120



pto shaft 306-16

1  Flanged yoke
2  (F1)Lining rings φ140×φ85
(F2)Lining rings φ160×φ97
3  Bush
4  Hub=1 3/8''-Z6 1 3/8"-Z21
5  Inner plate
6  Pressure plate
7  Bdt M12×1,25×65+nut 8.8
8  Spring
9  Bolt M10×1,5×85+nut

TORQUE SPECIFICATONS

pto shaft 306-17



 Spring
L 		F1 F2
 φ5 φ6  φ7  φ5  φ6 φ7
 Nm Nm Nm  Nm Nm Nm
L=28.5  240  390  640   280  470  770
L=28  320  510  850   360  610  1010
L=27.5  380  640  1070   440  740  1220
L=27  460  750  1230   520  860  1400
L=26.5  520  850  1360   590  980  1570
L=26  580  930  -  650  1070  -
L=25.5  620  - -  700  - -



Friction torque limiter Series FFV3-FFV4

pto shaft 306-18

Series
W-S 		 Series
  T-G 		16.1.png F3-F4 A L D W Torque
Nm max. 		Type Code
W2400
(035) 		32×76 F4 13/8"-Z6 161  200  90  1450  FFV4W035138 704W035138
13/8"-Z21 FFV4W035121 704W035121
13/4"-Z6 167  FFV4W035134 704W035134
13/4"-Z20 FFV4W035120 704W035120
W2500
(036) 		36×89 13/8"-Z6 167  200  103  1700  FFV4W036138 704W036138
13/8"-Z21 FFV4W036121 704W036121
13/4"-Z6 173  FFV4W036134 704W036134
13/4"-Z20 FFV4W036120 704W036120
W2600
(026) 		42×104 13/8"-Z6 196  200  122  2000  FFV4W026138 704W026138
13/8"-Z21 FFV4W026121 704W026121
13/4"-Z6 202  FFV4W026134 704W026134
13/4"-Z20 FFV4W026120 704W026120
T50-G50 30.22×80 F3 13/8"-Z6 170  180  96  2000  FFV3500138 703500138
13/8"-Z21 FFV3500121 703500121
F4 13/8"-Z6 200  2000  FFV4500138 704500138
13/8"-Z21 FFV4500121 704500121
13/4"-Z6 FFV4500134 704500134
13/4"-Z20 FFV4500120 704500120
T60-G60 30.22×92 F3 13/8"-Z6 178  180  101  2000  FFV3622138 703622138
13/8"-Z21 FFV3622121 703622121
F4 13/8"-Z6 200  2000  FFV4622138 704622138
13/8"-Z21 FFV4622121 704622121
13/4"-Z6 FFV4622134 704622134
13/4"-Z20 FFV4622120 704622120
T7N 35×94 F4 13/8"-Z6 175  200  105  2500  FFV47N138 7047N138
13/8"-Z21 FFV47N121 7047N121
13/4"-Z6 FFV47N134 7047N134
13/4"-Z20 FFV47N120 7047N120
T80 34.9×106.3 F4 13/8"-Z6 186  200  125  2000  FFV4824138 704824138
13/8"-Z21 FFV4824121 704824121
13/4"-Z6 FFV4824134 704824134
13/4"-Z20 FFV4824120 704824120



pto shaft 306-19

1  Flanged yoke
2  (F3)Lining rings φ140×φ85
(F4)Lining ringsφ160×φ97
3  Bush
4  Hub=1 3/8"-Z6 1 3/8"-Z21
5  Inner plate
6  Intermediate plate
7  Pressure plate
8  Bdt M12×1,25×65+nut 8.8
9  Bolt M10×1,5×85+nut 8.8
10  Spring



TORQUE SPECIFICATONS



pto shaft 306-20



 Spring
   L 		F3 F4
φ5 φ6  φ7 φ5 φ6  φ7
Nm Nm  Nm Nm Nm Nm
L=28.5 480  780  - 560  940  1540
L=28 640  1020  - 720  1220  2000
L=27.5 760  1280  - 880  1480  2440
L=27 920  1500  - 1040  1720  2800
L=26.5 1040  1700  - 1180  1960  3140
L=26 1160  1860  - 1300  2140  -
L=25.5 1240  - - 1400  - -



Friction torque limiter Series FFVT1-FFVT2



Series
WS 		Series
T-G 		19.1.png F1-F2 A L D W Torque
Nm max. 		Type Code
W210 27×74.6 F1 13/8''-Z6 143  180  90  900  FFV1W210138 70T1W210138
W2400
(035) 		32×76 F2 138''-Z6 143  200  90  1200  FFV2W035138 70T2W035138
13/8"-Z21 FFVT2W035121 70T2W035121
13/4''-Z6 149  FFV2W035134 70T2W035134
134''-Z20 FFV2W035120 70T2W035120
T40 27×74.6 F1 13/8''-Z6 154  180  83  1000  FFVT1421138 70T1421138
13/8''-Z21 FFVT1421121 70T1421121
F2 13/8''-Z6 200  1500  FFVT2421138 70T2421138
13/8''-Z21 FFVT2421121 70T2421121
T50 30.22×80 F1 13/8"-Z6 154  180  95  1000  FFVT1500138 70T1500138
13/8"-Z21 FFVT1500121 70T1500121
F2 13/8"-Z6 153  200  1500  FFVT2500138 70T2500138
13/8"-Z21 FFVT2500121 70T2500121
T60 30.22×92 F1 13/8''-Z6 161  180  101  1000  FFVT1622138 70T1622138
13/8''-Z21 FFVT1622121 70T1622121
F2 13/8''-Z6 200  1500  FFVT2622138 70T2622138
13/8''-Z21 FFVT2622121 70T2622121
13/4''-Z6 FFVT2622134 70T2622134
13/4''-Z20 FFVT2622120 70T2622120
T7N 35×94 F2 13/8''-Z6 166  200  105  1800  FFVT27N138 70T27N138
13/8"-Z21 FFVT27N121 70T27N121
13/4"-Z6 FFVT27N134 70T27N134
13/4"-Z20 FFVT27N120 70T27N120
T80 34.9×106.3 F2 13/8''-Z6 169  200  125  1800  FFVT2824138 70T2824138
13/8"-Z21 FFVT2824121 70T2824121
13/4"-Z6 FFVT2824134 70T2824134
13/4''-Z20 FFVT2824120 70T2824120



pto shaft 306-21

1  Flanged yoke
2  (F1)Lining rings φ140×φ85
(F2)Lining rings φ160×φ97
3  Bush
4  Hub=1 3/8''-Z6 1 3/8"-Z21
5  Inner plate
6  Belleville spring
7  Bot M12×1,25×65+nut 8.8
8  Bolt M10×1,5×85+nut 8.8



TORQUE SPECIFICATONS

pto shaft 306-22

 Spring
L 		F1 F2
 φ5  φ6 φ7  φ5 φ6 φ7
 Nm  Nm Nm  Nm Nm Nm
L=28.5  240   390  640   280  470  770
L=28  320   510  850   360  610  1010
L=27.5  380   640  1070   440  740  1220
L=27  460   750  1230   520  860  1400
L=26.5  520   850  1360   590  980  1570
L=26  580   930  -  650  1070  -
L=25.5  620  - -  700  - -



Friction torque limiter Series FFVT3-FFVT4



pto shaft 306-23

Series
W-S 		 Series
  T-G 		22.1.png F3-F4 A L D W Torque
Nm max. 		Type Code
W2400
(035) 		32×76 F4 13/8"-Z6 161  200  90  1450  FFVT4W035138 70T4W035138
13/8''-Z21 FFVT4W035121 70T4W035121
13/4''-Z6 167  FFVT4W035134 70T4W035134
13/4''-Z20 FFVT4W035120 70T4W035120
W2500
(036) 		36×89 13/8''-Z6 167  200  103  1700  FFVT4W036138 70T4W036138
13/8''-Z21 FFVT4W036121 70T4W036121
13/4"-Z6 173  FFVT4W036134 70T4W036134
13/4"-Z20 FFVT4W036120 70T4W036120
W2600
(026) 		42×104 13/8''-Z6 196  200  122  2000  FFVT4W026138 70T4W026138
13/8''-Z21 FFVT4W026121 70T4W026121
13/4''-Z6 202  FFVT4W026134 70T4W026134
13/4''-Z20 FFVT4W026120 70T4W026120
T50-G50 30.22×80 F3 13/8"-Z6 167  180  95  2000  FFVT3500138 70T3500138
13/8-Z21 FFVT3500121 70T3500121
F4 13/8"-Z6 168  200  2000  FFVT4500138 70T4500138
13/8''-Z21 FFVT4500121 70T4500121
13/4''-Z6 FFVT4500134 70T4500134
13/4"-Z20 FFVT4500120 70T4500120
T60-G60 30.22×92 F3 13/8"-Z6 175  180  101  2000  FFVT3622138 70T3622138
13/8''-Z21 FFVT3622121 70T3622121
F4 13/8''-Z6 177  200  2000  FFVT4622138 70T4622138
13/8''-Z21 FFVT4622121 70T4622121
13/4''-Z6 FFVT4622134 70T4622134
13/4"-Z20 FFVT4622120 70T4622120
T7N 35×94 F4 13/8''-Z6 181  200  105  2500  FFVT47N138 70T47N138
13/8''-Z21 FFVT47N121 70T47N121
13/4"-Z6 FFVT47N134 70T47N134
13/4"-Z20 FFVT47N120 70T47N120
T80 34.9×106.3 F4 13/8"-Z6 185  200  125  2500  FFVT4824138 70T4824138
13/8''-Z21 FFVT4824121 70T4824121
13/4''-Z6 FFVT4824134 70T4824134
13/4''-Z20 FFVT4824120 70T4824120



pto shaft 306-24

1  Flanged yoke
2  (F3)Lining rings φ140×φ85
(F4)Lining rings φ160×φ97
3  Bush
4  Hub=1 3/8"-Z6 1 3/8"-Z21
5  Inner plate
6  Intermediate plate
7  Belleville spring
8  Bolt M12×1,25×65+nut 8.8
9  Bolt M10×1,5×85+nut 8.8



TORQUE SPECIFICATONS



 Spring
   L 		F3 F4
φ5 φ6  φ7 φ5 φ6 φ7
Nm Nm  Nm Nm Nm Nm
L=28.5 480  780  - 560  940  1540
L=28 640  1020  - 720  1220  2000
L=27.5 760  1280  - 880  1480  2440
L=27 920  1500  - 1040  1720  2800
L=26.5 1040  1700  - 1180  1960  3140
L=26 1160  1860  - 1300  2140  -
L=25.5 1240  - - 1400  - -



Constant velocityjoint Series V



pto shaft 306-25

Series
W-S 		Series T 25.1.png A L1 L D Type Code
W210 23.8×91
27×74.6 		13/8°-Z6 95  287  155  VW210138 800W210138
13/8"-Z21 VW210121 800W210121
W2400
(035) 		27×94
32×76 		13/8"-Z6 105  350  166  VW035138 800W035138
13/8"-Z21 VW035121 800W035121
S2500
(036) 		32×106.3
36×89 		13/8"-Z6 118  348  182  VW036138 800W036138
13/8"-Z21 VW036121 800W036121
T40 23.8×91
27×74.6 		13/8"-Z6 95  287  155  V421138 800421138
13/8"-Z21 V421121 800421121
T60 27×94
32×76 		13/8°-Z6 105  350  166  V622138 800622138
13/8"-Z21 V622121 800622121
T80 32×106.3
36×89 		13/8"-Z6 118  348  182  V824138 800824138
13/8"-Z21 V824121 800824121



pto shaft 306-26

1  Hub=1 3/8”-Z6 1 3/8"-Z21
2  female connedor
3  Yoke 1
4  Yoke 2
5  Flanged yoke 1
6  Flanged yoke 2
7  Cross joumal
8  Retaining washer ring
9  Slider
10  Spring+pins



Speedlash Series SP

pto shaft 306-27

Series 27.1.png Type D L1 L A B Code
T10 22×54 SP110138 80  24  94  13/8"-Z6 Sφ12.7 900110138
SP110121 13/8"-Z21 900110121
T20 23.8×61 SP220138 102  13/8"-Z6 900220138
SP220121 13/8"-Z21 900220121
T30 27×70 SP311138 106  13/8"-Z6 900311138
SP311121 13/8"-Z21 900311121
T40 27×74.6 SP421138 108  13/8''-Z6 900421138
SP421121 13/8"-Z21 900421121
T50 30.22×80 SP500138 113  13/8"-Z6 900500138
SP500121 13/8"-Z21 900500121
T60 30.22×92 SP622138 120  13/8"-Z6 900622138
SP622121 13/8"-Z21 900622121
T70 30.22×106.3 SP723138 125  13/8"-Z6 900723138
SP723121 13/8"-Z21 900723121
T7N 35×94 SP7N138 120  13/8"-Z6 9007N138
SP7N121 13/8"-Z21 9007N121
T80 34.9×106.3 SP824138 128  13/8"-Z6 900824138
SP824121 13/8"-Z21 900824121



pto shaft 306-28

1  Yoke (type 10)1  13/8"-Z6
Yoke (type 10)1  13/8"-Z21
Yoke (type 20)1  13/8"-Z6
Yoke (type 20)1  13/8"-Z21
Yoke (type 30)1  13/8"-Z6
Yoke (type 30)1  13/8*-Z21
Yoke (type 40)1  13/8"-Z6
Yoke (type 40)1  13/8"-Z21
Yoke (type 50)1  13/8"-Z6
Yoke (type 50)1  13/8*-Z21
Yoke (type 60)1  13/8"-Z6
Yoke (type 60)1  13/8"-Z21
Yoke (type 7N)1  13/8"-Z6
Yoke (type 7N)1  13/8*-Z21
Yoke (type 80)1  13/8"-Z6
Yoke (type 80)1  13/8"-Z21
2  Protection set
3  Collar spring
4  Sliding sleeve collar
5  Snap ring
6  Ball 1/2''



Splined dimensions



pto shaft 306-29



PTO adaptor &splined shaft

pto shaft 306-30

Code A B Length Code A B Length
300138B118 30.1.png 11/8''-Z6 135  300138P118 30.5.png 11/8''-Z6 135
300138B138 13/8''-Z6 160  300138P138 13/8''-Z6 160
300138B134 13/4''-Z6 165  300138P134 13/4''-Z6 165
300138B121 13/8''-Z21 160  300138P121 13/8''-Z21 160
300138B120 13/4''-Z20 165  300138P120 13/4''-Z20 165
300134B138 30.2.png 13/8*-Z6 160  300121P118 30.6.png 11/8''-Z6 135
300134B121 13/8''-Z21 170  300121P138 13/8''-Z6 160
300134B120 13/4''-Z20 175  300121P134 13/4''-Z6 165
300121B118 30.3.png 11/8"-Z6 135  300121P120 13/4''-Z20
300121B138 13/8''-Z6 160
300121B134 13/4''-Z6 165
300121B120 13/4"-Z20
300120B138 30.4.png 13/8''-Z6 170
300120B134 13/4''-Z6 175
300120B121 13/8''-Z21 170



L 30.7.png 30.8.png
    F
1 1/8''-z6 		F
1 3/8''-z6 		F
1 3/4''-z6 		F
1 3/8''-z21 		F
1 3/4''-z20 		F
1 3/8''-z6
60  302G118060 302G138060 302G134060 302G121060 302G120060
65  302G118065 302G138065 302G134065 302G121065 302G120065
80  302G118080 302G138080 302G134080 302G121080 302G120080 302G138080S
100  302G118100 302G138100 302G134100 302G121100 302G120100
120  302G138120
130  302G138130



L 30.9.png
       F
1 1/8''-z6 		       F
1 1/8''-z7 		       F
1 3/8''-z6 		       F
1 3/4''-z6 		       F
1 3/4''-z20
- 301G118-- 301G138-- 301G134-- 301G121--- 301G120--



L 30.10.png
       F
1 1/8''-z6 		       F
1 1/8''-z7 		       F
1 3/8''-z6 		       F
1 3/4''-z6 		       F
1 3/4''-z20
- 301G118D-- 301G138D-- 301G134D-- 301G121D--- 301G120D--



Corss journal

pto shaft 306-31

Series Type D L
T10 2000110 22 54
W100 2000010 22 55
T20-W200 2000220 23.8 61
T30-W1 2000311 27 70
T40-W210-W2300S 2000421 27 74.6
W220 2000622 30.18 92
S230 2000723 30.18 106.3
T50-G50 2000500 30.22 80
T60-G60 2000600 30.22 92
T70 2000700 30.22 106.3
W2400(035) 2000035 32 76
T80-G80-S240 2000824 34.9 106.3
T7N-G70 200007N 35 94
S2500(036) 2000036 36 89
T90-G90 2000900 41 108
S2600(026) 2000026 42 104



pto shaft 306-32

Series Type D1 L1 D2 L2
T40  W210 20002040  23.8  91  27  74.6
T60  W2400 20004035  27  94  32  76
T80  W2500 20003536  32  106.3  36  89



Tubes

32.1.png 32.5.png
Type A B Code Type A B Code
T10 26.5  3.5  301T263 T10 33  2.6  302T332
T20 29  3.5  301T293 T20 36  3.4  301T363
T30 36  3.4  301T363 T30 43  3  302T433
T40 36  4.5  301T364 T40 43  3  302T433
T50 45  4  301T454 T50 52  3  302T523
T60 45  4  301T454 T60 54  4  302T544
T70 45  5.5  301T455 T70 54  4  302T544
T80 54  4  301T544 T80 63  4  302T634
T90 54  6  301T546 T90 63  4  302T634
32.2.png 32.6.png
Type A B S Code Type A B S Code
W100 23.8  31  5  301L235 W100 30  39  3  302L303
W200-W1-W210 34.5  40  4  301L344 W200-W-W210 41.3  48  3  302L413
W2300S-W220
W2400(035)		 39.5  49  5  301L395 W2300S-W220
W2400(035)		 48  57.5  4  302L484
32.3.png 32.7.png
Type A B S Code Type A B S Code
S230-S240
S2500(036)		 51  37  - 301S510 S230-S240
S2500(036)		 61  47  4.5  302S614
S2600(026) 61  47  4.5  301S614 S2600(026) 71  57.5  5  302S715
32.4.png 32.8.png
Type A L Code Type A S Code
G50-G60 35-Z12 301G35Z12-- G50-G60 55  3  300C553
G70-G80 40-Z14 301G40Z14-- G70-G80 61  3.5  300C613
G90 45-Z16 301G45Z16-- G90 69  5  300C695



Plastic shield

pto shaft 306-33

Series Shield tube diameter Retaining collar(A)
Outer Inner Outer Inner
10  61  55.6  40  34
20  46  40
30-40 66.5  61  54  47
50  81.2  75  62.5  54.5
60-70 69  60
80-90 96  89.9  81.5  69.5



pto shaft 306-34

Series Shield tube diameter Retaining collar(⊄)
Outer Inner Outer Inner
10  61  55.6  40  34
20  46  40
30-40 66.5  61  54  47
50  81.2  75  62.5  54.5
60-70 69  60
80-90 96  89.9  81.5  69.5

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Copyright © Hangzhou Ocean Industry Co., Ltd. All Rights Reserved

Privacy Policy

pto shaft 306-44E-mail pto shaft 306-45Tel pto shaft 306-46 WeChat
pto shaft 306-47
 pto shaft 306-48
