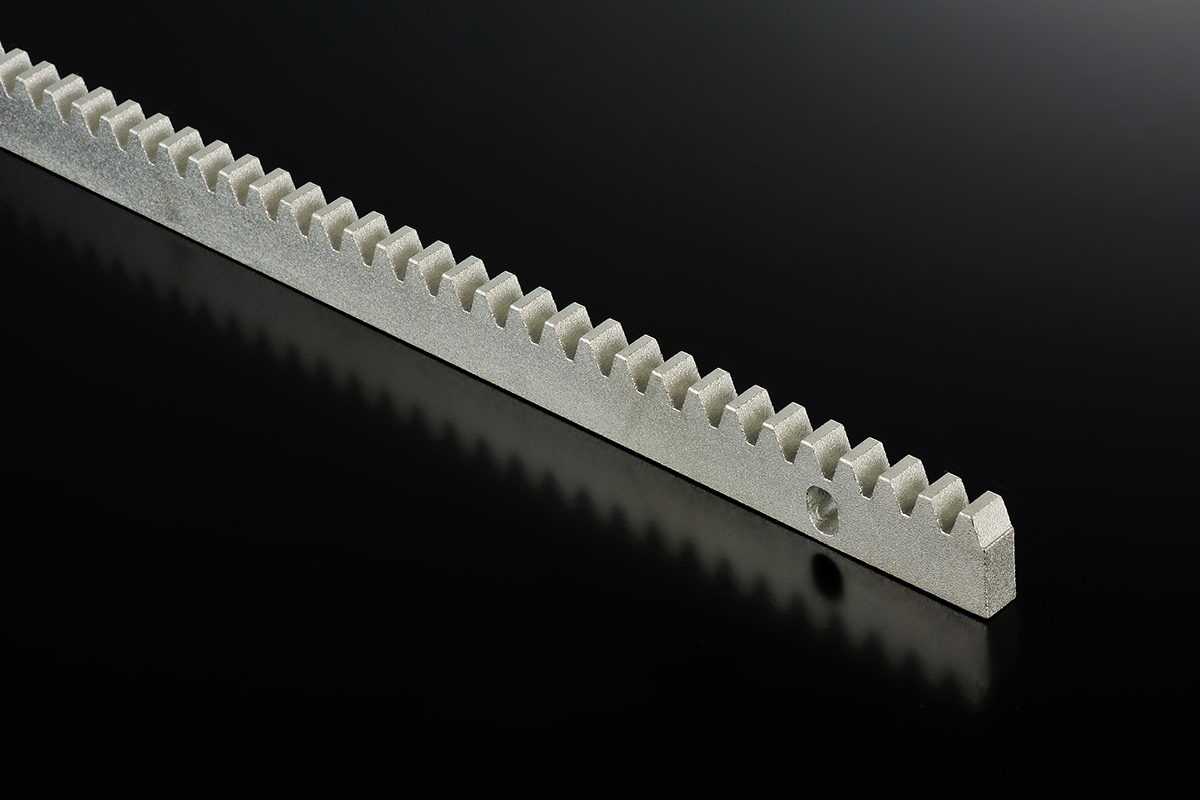

Sliding Door Gear Rack, China Sliding Door Gear Rack Manufacturers, Suppliers, Factory

Description

Most of Ocean Sliding Door Gear Rack are exported to Europe since 2005. For this usage, just as per our standard. If you need other special gear rack, Most of Ocean OEM customers send drawings and Ocean produce as per their drawings, if you do not have drawing, Ocean can also produce as per your sample.

Parameter

sliding door gear rack-3

Material: Q235A / PA66

Type: Straight Rack

Treatment of Teeth: Milled

Surface treatment: Galvanized or untreated

Heat treatment: Normalized or untreated

Pressure Angle: 20 degree

Code	Module	L	No. of Teeth	A	B	C1	C2	No.of Holes	kg
M4 8X30X1005	4	1005.28	80	8	30	52.5	450	3	1.58
M4 9X30X1005	4	1005.28	80	9	30	52.5	450	3	1.78
M4 10X30X1005	4	1005.28	80	10	30	52.5	450	3	1.96
M4 11X30X1005	4	1005.28	80	11	30	52.5	450	3	2.18
M4 12X30X1005	4	1005.28	80	12	30	52.5	450	3	2.37
M4 12X30X1998	4	1997.99	159	12	30	53.5	630	4	4.7
M4 22X22X1005	4	1005.28	80	22	22	*	*	*	3.1 6.1
M4 22X22X1998	4	1997.99	159	22	22	*	*	*	6.1
M6 30X30X999	6	999.02	53	30	30	*	*	*	5.5 11.0
M6 30X30X1998	6	1998.05	106	30	30	*	*	*	11
Nylon Gear Rack 4 Fixing	4	1017.85	81	20	26	*	*	4	1.3
Nylon Gear Rack 6 Fixing	4	1017.85	81	20	26	*	*	6	1.3
