ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains
ZGS38 combine harvester chains

ZGS38 combine harvester chains

Get a Quote
  • Description
  • Parameter
  • Related products
Description

The ZGS38 combine harvester chain conforms to the standard of T/CAAMM 4 China agricultural machinery industry group, which mainly includes feeding chain with k-type attached plate, lifting chain with SD-type attached plate and corn harvesting chain with CPE-type attached plate, etc,, and can also be customized and developed according to user requirements.

Using high-quality raw materials, efficient process equipment and advanced heat treatment, the product has the characteristics of high tensile strength, high fatigue strength and wear resistance, By developing special antirust grease, it can meet the working conditions of agricultural machinery outdoor operation;

Products are widely used in the harvesting process of com, wheat and other crops.

Parameter

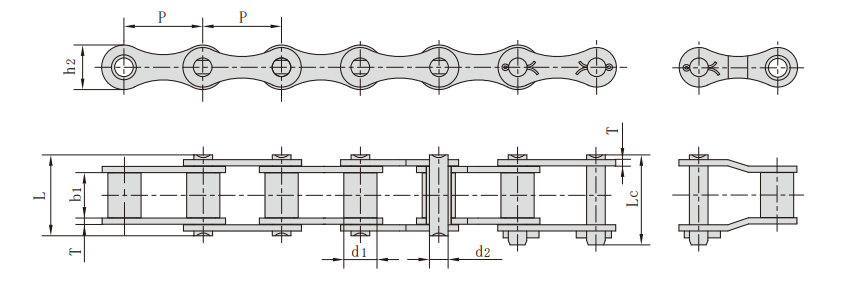

ZGS38 combine chain with attachments
zgs38 combine harvester chains-3

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Inner
plate depth 		Plate
thickness 		Tensile
strength 		Average
tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
ma x 		L
max 		Lc
max 		h2
max 		T
max 		Q
min 		Q0 q
mm mm mm mm mm mm mm mm kN/lbf kN kg/m
ZGS38 38.0 16.00 22.0 9.00 39.0 43.0 21.5 3.0 45.0/10116 54.0 2.00
ZGS38HF7 38.0 16.00 22.0 9.00 47.0 51.0 21.5 5.0 80.0/18000 88.0 2.74
ZGS38F42 38.0 16.00 22.0 9.00 43.2 46.5 21.5 4.0 45.0/10116 54.0 2.43

zgs38 combine harvester chains-4

Chain No. Pitch Roller
diameter 		Width
between
inner plates 		Pin
diameter 		Pin
length 		Inner
plate depth 		Plate
thickness 		Tensile
strength 		Average
tensile
strength 		Weight
per
meter
P d1
max 		b1
min 		d2
max 		L
max 		Lc
max 		h2
max 		T
max 		Q
min 		Q0 q
mm mm mm mm mm mm mm mm kN/lbf kN kg/m
CZGS38F10 38.0 15.88 22.0 7.92 39.0 43.0 21.3 3.0 45.0/10116 54.0 2.39
CZGS38F11 38.0 15.88 22.0 7.92 37.1 41.0 21.2 2.5 30.0/6745 33.0 2.10
CZGS38HF12 38.0 15.88 22.0 7.92 39.9 42.7 21.2 3.2 45.0/10116 54.0 2.42
CZGS38F13 38.0 16.00 22.0 9.00 39.0 43.0 21.5 3.0 45.0/10116 54.0 2.42
CZGS38HF36 38.0 15.88 22.0 7.92 40.5 44.0 21.3 3.5 50.0/11241 55.0 2.63
ZGS38 combine chain with attachments

 zgs38 combine harvester chains-5


Chain No. 		P G F W h4 d4
mm mm mm mm mm mm
ZG S38F2 38.0  16.0  52.0  71.5  19.6  11.0
ZG S38F6K1 38.0  16.0  52.0  74.6  19.6  8.5
ZG S38F10K1 38.0  20.0  52.0  72.0  17.0  8.4
ZG S38F13K1F1 38.0  20.0  52.0  80.0  17.0  8.6
ZG S38HF12K1F1 38.0  25.0  52.0  72.0  17.0  8.4
ZG S38F18 38.0  16.0  52.0  69.6  19.6  8.5
ZG S38F42K1 38.0  16.0  52.0  74.6  19.6  8.5
ZG S38F43K1 38.0  16.0  52.0  74.6  19.6  11.0
ZG S38F46 38.0  16.0  52.0  74.6  20.0  8.5
产品第四张ZGS38

Chain No. 		P G F W h4 d4
mm mm mm mm mm mm
CZGS38F10K1 38.0  20.0  52.0  72.0  17.0  8.4
CZGS38F13K1F1 38.0  26.5  52.0  80.0  17.0  8.6
产品第五张ZGS38

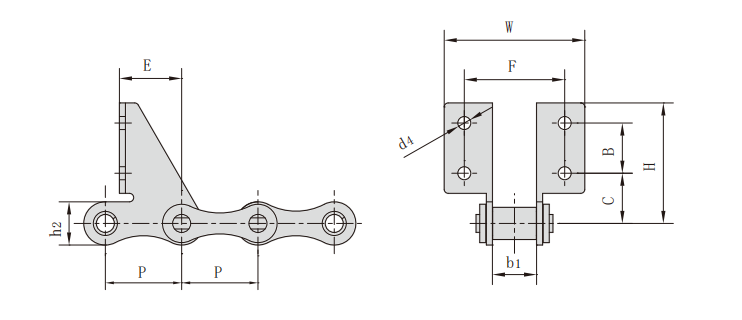

Chain No. 		P b1 C B F W d4 E H h2
mm mm mm mm mm mm mm mm mm mm
ZGS38F5 38.0  22.0  32.0  25.0  52.0  72.0  7.0  31.0  67.0  21.5
ZGS38F8 38.0  22.0  32.0  25.0  52.0  68.0  7.0  31.0  67.0  21.5
ZGS38F14SD 38.0  22.0  25.0  25.0  50.0  70.0  6.5  31.0  60.0  21.5
ZGS38F44 38.0  22.0  25.0  25.0  52.0  72.0  7.2  30.0  60.0  21.5
产品第六张ZGS38

Chain No. 		P b1 C F W d4 E H h2
mm mm mm mm mm mm mm mm mm
ZGS38SDF4 38.0  22.0  30.0  52.0  70.0  8.5  31.8  55.0  21.5
ZGS38F35 38.0  22.0  29.8  53.0  71.0  8.7  31.3  55.0  21.5
产品第七张ZGS38

Chain No. 		Pitch Roller
diameter 		Width between
inner plates 		Rubber attachment dimension
P d1
max 		b1
max 		W
max 		L H
max 		F Tr
mm mm mm mm mm mm mm mm
ZGS38F47 38.0  16.0  22.0  480.0  360.0  77.0  52.0  8.0
产品第八张ZGS38



Chain No. 		P C F α
mm mm mm
ZGS38F1 38.0  60.0  14.0  32.5°
产品第九张ZGS38
Chain No. P C F W d4 α
 mm mm mm mm mm
ZGS38F3 38.0  30.0  52.0  68.4  6.50  43.5°
ZGS38SDF1 38.0  30.0  52.0  68.4  8.50  43.5°
ZGS38SDF5 38.0  30.0  52.0  68.0  8.60  40.5°
ZGS38SDF6 38.0  30.0  52.0  68.0  8.50  40.5°
ZGS38F32SD 38.0  30.0  52.0  68.4  6.50  43.5°
产品第十张ZGS38

Chain No. 		P G F W h4 d4
mm mm mm mm mm mm
ZGS38K1 38.0  32.0  53.0  83.2  20.0  8.5
产品第十一张ZGS38

Chain No. 		P C F W d4 E
mm  mm mm mm mm mm
CZGS38F10SD 38.0  30.0  52.0  80.0  6.6  19.0
CZGS38F11SDF1 38.0  30.0  52.0  76.0  6.6  29.5
产品第十二张ZGS38

Chain No. 		P b1 h2 T C α
mm mm mm mm mm
ZGS38-C6E 38.0  22.0  21.5  3.0  62.0  15°
ZGS38-C6EF1 38.0  22.0  21.5  3.0  72.0  10°
ZGS38-C6EF2 38.0  22.0  21.5  3.0  84.0  15°
ZGS38-C6EF3 38.0  22.0  21.5  3.0  53.0  13°
ZGS38-C6EF4 38.0  22.0  21.5  3.0  55.0  13°
ZGS38-CPEF6 38.0  22.0  21.5  3.0  75.0  15°
产品第13张ZGS38

Chain No. 		P b1 h2 d4 C B α
mm mm  mm mm mm mm
ZGS38-CPEF3 38.0  22.0  65.4  7.3  65.4  19.5  15°
产品第14张ZGS38
Chain No. P b1 C α
mm mm mm
ZGS38-CPEF1 38.0  22.0  60.0  22.5°
