Description

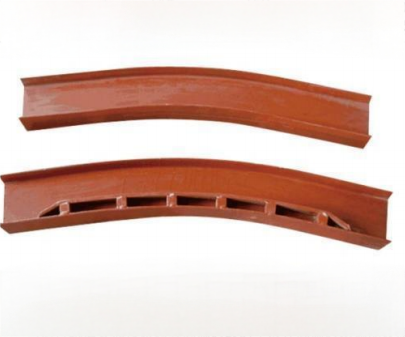

It is used at the ascending and descending points of the conveyor chain. It can be cut at any angle according to the installation site conditions, but the angle should not be greater than 45 °.However, the influence of the distance between the two spreaders connected to the ascending and descending points must also be considered.

Parameter

Project Type	Track specifications	m	R	α
XT80	8#	160	1500 2000 2500	15°
XT80	10#	160	1500 2000 2500	30°
XT100	12#	160	2000 2500 3150 4000 5000	30°
XT100	14#	160	2000 2500 3150 4000 5000	45°
XT160	14#	160	2000 2500 3000 3500 4000 4500 5000	15°
	14#	160		35°
	16#	180		45°
